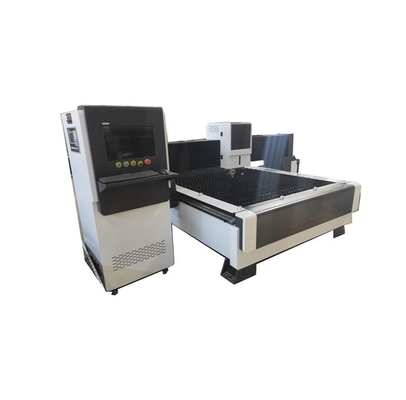

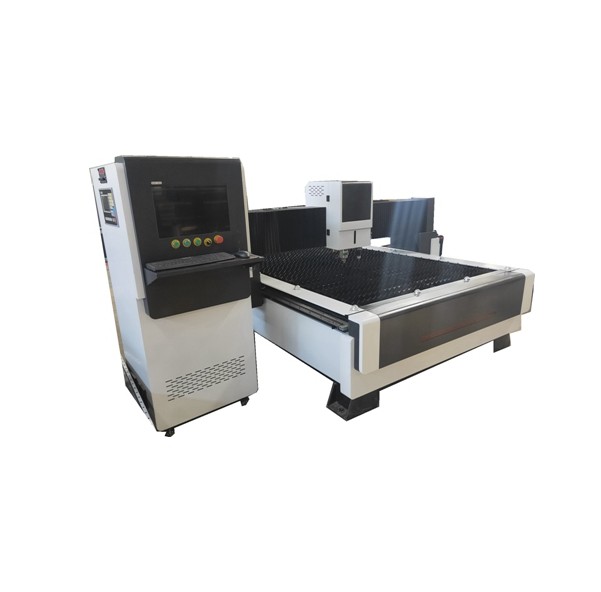

1000W 3015 carbon steel sheet and aluminum sheet CNC Fiber Laser Cutting Machine with 120A plasma cutting head
1000W fiber laser cutting machine features :
1 Pressure-resistant and explosion-proof water pipes and air pipes ensure the safe and stable operation of the machine under special circumstances.
2. High-precision grinding rack to ensure higher accuracy.
3. Fully enclosed fire protection is a high and low temperature towline, which ensures the safety of the operation site.
4. X Y axis flame retardant dust cover.
5. France Schneider Electric electrical components
6. Highly flexible, anti-breaking, cable that can shield external interference signals
7. Fully automatic oiling system
120A plasma cutting machine cutting thickness is 0-25mm
|
HUA YUAN POWER
|
63A | 100/120A | 160A | 200A | ||
| QUALITY CUTTING THICKNESS | 8MM | 18NN | 25MM | 30MM | ||
| MAX CUTTING THICKNESS | 12MM | 25MM | 35MM | 40MM | ||
| HYPERTHEM POWER | 45A | 65A | 85A | 105A | 125A | 200A |
| QUALITY CUTTING THICKNESS | 5MM | 8MM | 12MM | 15MM | 20MM | 30MM |
| MAX CUTTING THICKNESS | 8MM | 15MM | 20MM | 25MM | 30MM | 40MM |
|
Application
|
1000W FIBER LASER CUTTING Machine
|
|
Applicable Material
|
Metal
|
|
Condition
|
New
|
|
Cutting Area
|
3000mm*1500mm
|
|
Graphic Format Supported
|
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
|
|
Cooling Mode
|
WATER COOLING
|
|
Control Software
|
Starcut
|
|
Certification
|
ce, ISO, GS, Sgs, UL, CCC
|
|
Weight (KG)
|
4200KG
|
|
After-sales Service Provided
|
Engineers available to service machinery overseas
|
|
Machine type
|
fiber laser metal sheet cutter machine with plasma cutting head
|
|
Core Components
|
Motor
|
1000W fiber laser cutting machine Cutting samples
1000W fiber laser cutting machine with 120A plasma cutting head Delivery :
2 sets 3015 size in one 20'FCL container
5 sets 3015 size in one 40'FCL container
