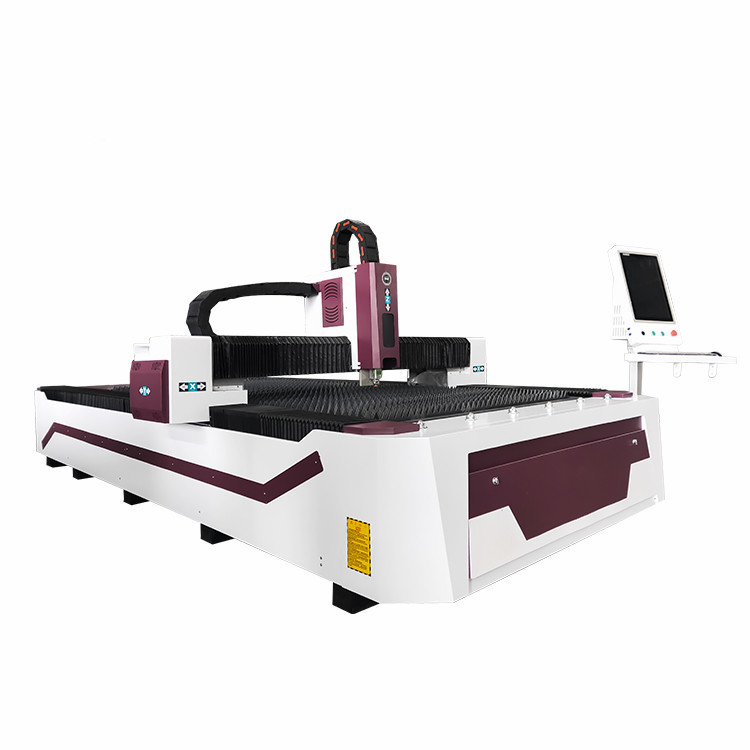

3000W 3015 carbon steel sheet and aluminate sheet CNC Fiber Laser Cutting Machine
3000W fiber laser cutting machine features :
1 Pressure-resistant and explosion-proof water pipes and air pipes ensure the safe and stable operation of the machine under special circumstances.
2. High-precision grinding rack to ensure higher accuracy.
3. Fully enclosed fire protection is a high and low temperature towline, which ensures the safety of the operation site.
4. X Y axis flame retardant dust cover.
5. France Schneider Electric electrical components
6. Highly flexible, anti-breaking, cable that can shield external interference signals
7. Fully automatic oiling system
8. Easy-to-feed bull's eye wheel
9. High-strength body leveling feet, more suitable for different customer sites , To ensure high-quality running cutting
10. professional serrated blade (with anti-scratch iron plate function)
11. air cushion film fresh-keeping film pearl cotton three-layer soft packaging standard
| material | thickness (MM) | speed (M/MIN) |
| Q235B carbon steel | 4 | 3.3-3.5 |
| 6 | 2.3-2.5 | |
| 8 | 2.1-2.2 | |
| 10 | 1.5-1.7 | |
| 12 | 1.2-1.4 | |
| 14 | 1-1.1 | |
| 16 | 0.85-0.9 | |
| 18 | 0.7-0.75 | |
| 20 | 0.6-0.65 | |
| 22 | 0.5-0.55 | |
| 25 ( we don't suggest cut this thickness) | 0.45-0.5 |
|
Application
|
3000W FIBER LASER CUTTING Machine
|
|
Applicable Material
|
Metal
|
|
Condition
|
New
|
|
Cutting Area
|
3000mm*1500mm
|
|
Graphic Format Supported
|
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
|
|
Cooling Mode
|
WATER COOLING
|
|
Control Software
|
Cypcut
|
|
Certification
|
ce, ISO, GS, Sgs, UL, CCC
|
|
Laser Head Brand
|
Raytools
|
|
Servo Motor Brand
|
FUJI OR Yaskawa
|
|
Weight (KG)
|
4200KG
|
|
After-sales Service Provided
|
Engineers available to service machinery overseas
|
|
Machine type
|
fiber laser metal sheet cutter machine
|
|
Core Components
|
Motor
|
3000W fiber laser cutting machine Cutting samples
3000W fiber laser cutting machine Delivery :
2 sets 3015 size in one 20'FCL container
5 sets 3015 size in one 40'FCL container
