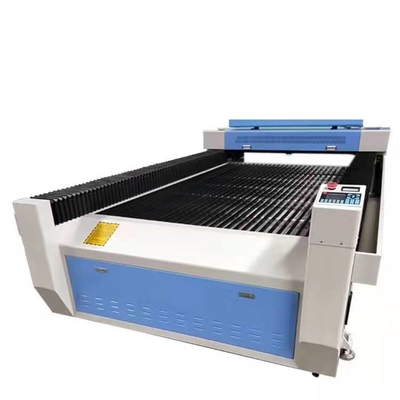

1325 150w,180w,280w,300w CO2 RECI laser tube Laser engraving and cutting machine
| Advantage Features: | |
| 1. Configure high power and quality laser tube, can work over 10000 hours. | |
| 2. DSP control system, rich function, can approach engraving on plane, gradient engraving by 360 degrees, cutting and drilling holes etc. | |
| 3. with function of restoring from poweroff, continuation function from break point. | |
| 4. Transmit files directly from Corel draw and Auto CAD, Photoshop, Tajima directly. | |
| 5. Adopt TAIWAN imported PMI linear rail, high precision. | |
| 6. Motorized up and down working table makes thicker material engraving and cutting more easy. | |
| 7. LCD screen monitor and USB interface support offline working from pen driver | |
Applicable material :
metal cutting:carbon steel( max 3-4mm) , stainless steel (max 2mm)
non-metal materials:acrylic,wood,leather,stone bamboo, jade, marble, organic glass, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable Industry :
advertisement, arts and crafts, leather, toys, garments, model , building upholster,
computerized embroidery and clipping, packaging and paper industry.
Accessories offered :
Standard accessories
1) Air pump for Air Assist
2) Exhaust fan with pipes
3) water pump(water chiller 3000)
4) USB Cable (connecting PC and laser)
5) DVD (including lasercut software set, user manual, guiding/training videos etc.)
6) Tool bag/box
7)150w RECI laser tube
8) leadshine 3 phase motor
9)RD6442S control system
10)PMI liner guild rail
11)Singapore lens
Specification :
| X,Y,Z working area | 1300*2500mm | |
| Laser power | 150w-180w RECI brand CO2 sealed glass laser tube(micro), life is 10000 hours | |
| Cooling mode | Circulating-water-cooling, cw3000 industry chiller(FREE) | |
| Power adjusting | 0-100%controlling,no segment and adjusting by software | |
| Machine control and drive | Speedy DSP controlling with LCD screen panel, stepper motor | |
| motorized up and down working table | 200-300mm(optional), if you need, the price will be USD 200 higher. | |
| Rotating Axis | (USD 200), OPTIONAL | |
| Engraving Speed | 1-60000mm/min | |
| Cutting speed | 1-10000mm/min | |
| Cutting thickness | 0-20mm (non metal) | |
| Support Graphic Format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw, Photo shop, Tajima direct outputting | |
| Position system | Red Point | |
| Resolution ratio | 0.05mm | |
| Operating system | RD6332 control system | |
| Resolution ratio | ＜0.01mm | |
| Location precision | ＜0.01mm | |
| PC interface | USB | |
| Gross power | 1.6kw | |
| Power supply | 220V±10%/10A, 50 - 60Hz | |
| Operating temperature | 0℃-45℃ | |
| gross weight and package size | 2090×1630×1640mm free fumigation wooden case | NET/GROSS WEIGHT: 1000KG/1200KG |
| Operating humidity | 5%-80% free of condensed water | |
