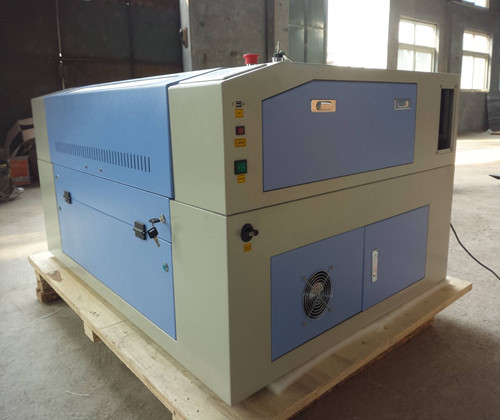

6090 80W CO2 laser tube Laser engraving machine Laser engraving machine
This machine adopt imported dual linear guide and DSP system control software,3-phase motor,it has stable performance and applicable for different industries.
Laser engraving machine Applicable materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries:
advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
Laser engraving machine Parameters
| Model | QFXF6090 |
| Laser tube type | C02 glass sealed laser tube |
| Laser power | 80w(other power is optional) |
| Driver type | Stepper motor |
| Max speed | 60000mm/min |
| Location precision | <0.01mm |
| PC interface | USB |
| Software | laser work |
| Control system | DSP system |
| Compatible software | Coreldraw/Autocad/Photoshop...... |
| Power | AC 110 - 220V +/- 10%, 50 - 60Hz |
| Image forme | BMP, PLT, DST, DXP, AI ,DWG,LAS |
| Red dot pointer | yes |
| Rotary attachment | optional |
| Warranty | 12 months for the whole machine |
| package dimension | 1570*1220*1150mm |
| Machine dimension | 1450*1100*1030mm |
| G.w.: | 360kgs |
| N.w.: | 340kgs |
Laser engraving machine Standard accessories
1) Air pump for Air Assist
2) Exhaust fan with pipes
3) water pump(water chiller 3000 is optional)
4) USB Cable (connecting PC and laser)
5) DVD (including lasercut software set, user manual, guiding/training videos etc.)
6) Tool bag/box
7) 80w laser tube
8) leadshine 3 phase motor
9) RD6442S control system
10) PMI liner guild rail
11) Singapore lens
