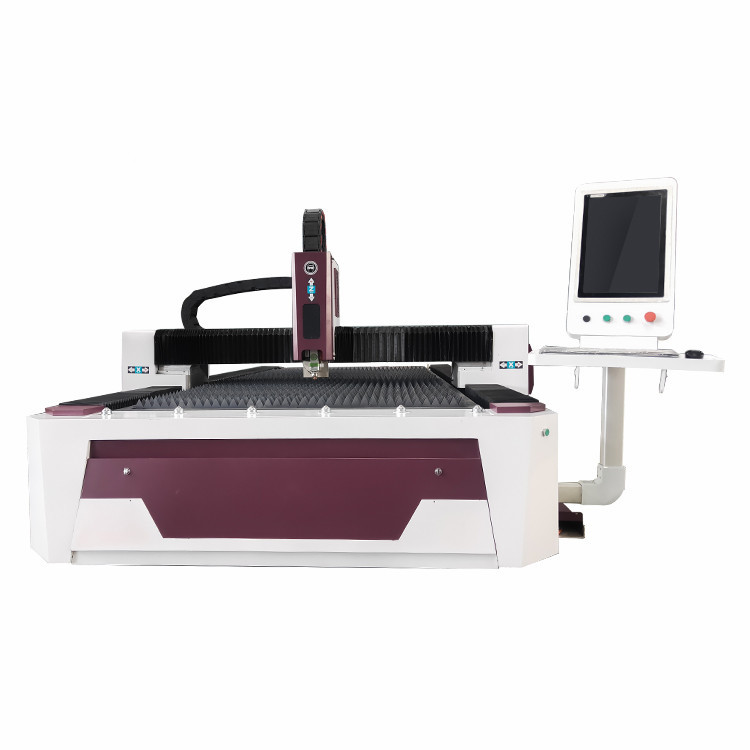

2000W 3015 metal stainless steel CNC Fiber Laser Cutting Machine
2000W fiber laser cutting machine features :
1 professional cypcut control system .
2 Japan 750w Fuji servo motor with brake
3 100% genuine 25 Hiwin
4 Overall cast aluminum weighing design, faster and more accurate operation.
5 Heavy-duty body, with multi-faceted professional vacuum duct holes
6 Industrial computers with long screens are more convenient to use and more in line with the habit of using mobile phones,
7 Swiss raytool laser head with red light positioning operation is more stable and convenient
8 China famous brand, The MAX laser laser,
9 Japan shimpo reducer, is more accurate, faster and more stable.
10 Chinese famous brand S&A dual cooling chiller is more professional and can work for a long time.
11 Luxury models are fully surrounded by sheet metal, and put in the workshop to enhance the level of the factory.
|
Material
|
thickness
(mm)
|
Speed
(meter/min)
|
Pressure
(mpa)
|
Focus
|
|
SS 201
|
1
|
9
|
0.8
|
-4
|
|
SS 201
|
2.2
|
2
|
1.2
|
-4
|
|
SS 304
|
1.3
|
7
|
0.9
|
-4
|
|
SS 304
|
1.8
|
3
|
1
|
-4
|
|
Carbon Steel
|
1.1
|
9(10)
|
0.8
|
-1
|
|
Carbon Steel
|
2.4
|
2.2
|
0.4
|
-3
|
|
Carbon Steel
|
2.8
|
1.5
|
0.4
|
-3.5
|
|
Carbon Steel
|
4
|
1.5(1.2)
|
0.4
|
-4
|
|
Application
|
2000W FIBER LASER CUTTING Machine
|
|
Applicable Material
|
Metal
|
|
Condition
|
New
|
|
Cutting Area
|
3000mm*1500mm
|
|
Graphic Format Supported
|
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
|
|
Cooling Mode
|
WATER COOLING
|
|
Control Software
|
Cypcut
|
|
Certification
|
ce, ISO, GS, Sgs, UL, CCC
|
|
Laser Head Brand
|
Raytools
|
|
Servo Motor Brand
|
FUJI OR Yaskawa
|
|
Weight (KG)
|
4200KG
|
|
After-sales Service Provided
|
Engineers available to service machinery overseas
|
|
Machine type
|
fiber laser metal sheet cutter machine
|
|
Core Components
|
Motor
|
2000W fiber laser cutting machine Cutting samples
