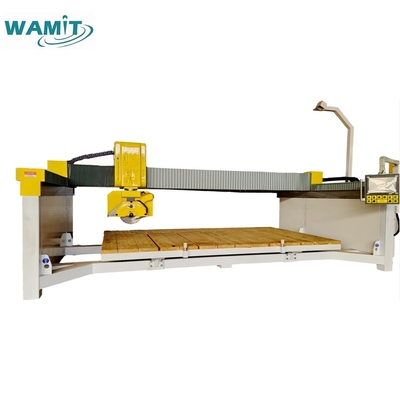

3.5m by 2m 5 axis quartz granite marble coutertop CNC milling cutting bridge saw stone cutting machine
This five axis marble and granite bridge cutting. Adopting advanced microcomputer control system, it can realize manual programming, PC programming and other programming methods, complete the processing automatically. it is very convenient for cutting, edge grinding, grooving, kitchen table processing, shaped processing and other functions.
5 axis CNC marble and granite cutting machine advantages:
1. wireless control
2. infrared aligned laser
3.87 degree titling worktable
4. rolling wheels for the working table
5. 15 inch HD touch screen interface
6. camera function positioning and typesetting
5 axis CNC marble and granite cutting machine features :
1. Photographing, typesetting and positioning, and automatic measurement of plate thickness and tool size.
2. Use good computer system control, simple operation, high efficiency.
3. Choose good quality electrical appliances with long service life and low maintenance cost
4. The native supports one-click transformation in multiple languages.
5 axis CNC marble and granite cutting machine Specification :
| Programming method | Manual programming |
| Programming method 2 | CAD The import |
| Control method | CNC |
| Main motor power | 7.5kw |
| Working voltage | 380V-3phase/50HZ |
| Speed R.P.M | 1000-6000r/min |
| Blade size | 350-400mm |
| X-axis working stroke | 3500mm |
| Y-axis working stroke | 2000mm |
| A-axis working stroke | 360°Rotate freely |
| B-axis working stroke | 0-90°Automatic chamfering |
| Cutting thickness | 80mm |
| Processing precision | 0.2mm |
| Working table size | 3500*2000mm |
| Tilting working table | YES |
| Camera | YES |
| Overall size | 5800*3120*3320mm |
| Weight | 3900KG |
