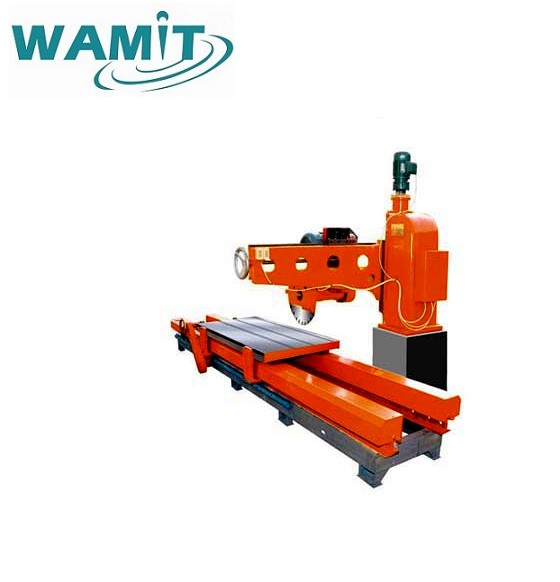

Oil Soaking Single Arm Marble Granite Stone Cutting Machine
Marble Granite Stone Cutting Machine usage :
It is used to cut marble and granite slabs. adapted full sealing oil-soaking type guide rail structure. stable working, flexible and easy-to-handle , this stone cutting machine can obtain bright and good finish and keep cutting accuracy. Moreover, it enables the saw web to rotate to a certain degree by adjusting the revolving disc of sawing head, it can process those slabs with required angles and chamfer them. It also can chamfer angle. Through revamping the main shaft and install the milling tool and stripe milling tool, it can process the step-stone and stripe-stone.
Marble Granite Stone Cutting Machine Specification :
|
Max. length of the slabs 3000mm Max. thickness of slabs 180mm Diameter of blade Φ400～Φ600mm Max.angle of rotation of main shaft 45° |
Guide line length: 5000mm Work-bench(L×W) 3000×840 mm Power of main motor 11kw Dimensions(L×W×H) 5015×2100×2400mm Total weight about 3000kg |
