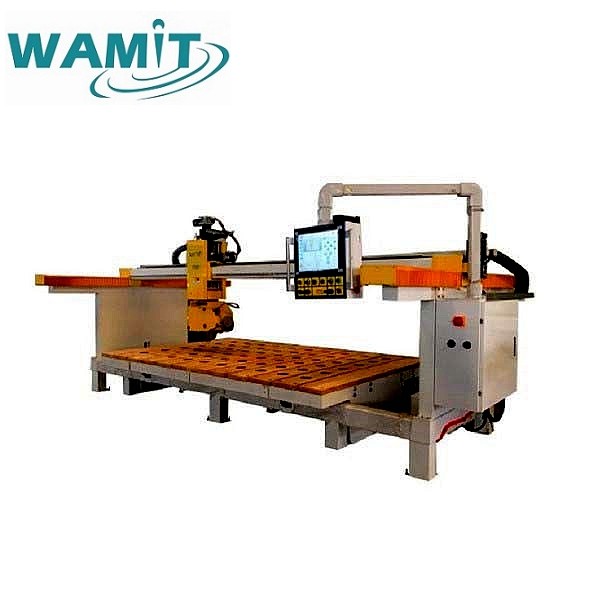

5 axis CNC Marble and Granite Countertop Stone Cutting Machine
Marble Granite Stone Cutting Machine usage :
The CNC stone cutting machine is designed to realize X-Y-Z-A-B 5-axis linkage with more wider utilization.
It can be used for cutting, chamfering, polishing, slotting, drilling and arc grinding etc. with easy operation
and more practicability.
Marble Granite Stone Cutting Machine Specification :
| Programming method 1 | Manual programming |
| Programming method 2 | Image input |
| Control method | CNC |
| Power | 4kw |
| Working voltage | 380V-3phase/50HZ, if you need 220v/ 415v, we can also do |
| R.P.M | 2800r/min |
| Blade size | 350mm |
| X-axis working stroke | 3500mm |
| Y-axis working stroke | 2000mm |
| Z-axis working stroke | 260mm |
| A-axis working stroke | 360°free rotation |
| B-axis working stroke | 0-90 degree chamfer automatically |
| X/Y-axis cutting speed | 1-2000mm/min |
| Z-axis cutting speed | 1-1000mm/min |
| A cutting speed | 0-7r/min |
| Cutting thickness | 100mm |
| Processing precision | 0.2mm |
| Working table size | 3500*2000mm |
