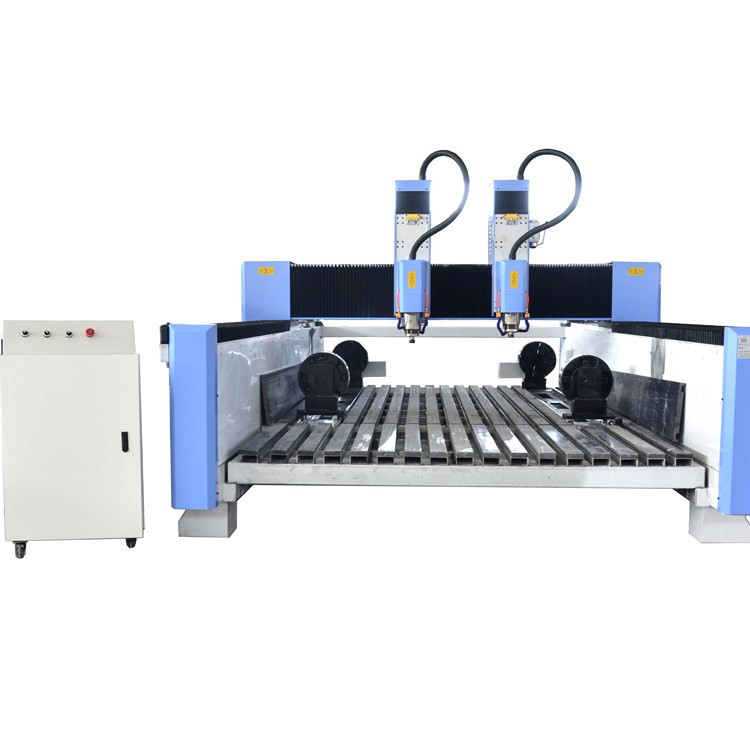

Double Heads 21KW CNC Router Machine 500mm thick Stone Carving Machine

Voltage	380V optional 220V	Sawing thickness	500mm
power	21KW	Core components	Guide rails, sliders, screw rods, racks, motor drives, systems, spindles
Size	2250mm*3450mm*2200mm	Core component warranty period	1 year
weight	2000kg	Packing	Wooden box or bare bag



Product features:



Imported straight square guide rail, high precision helical rack, double row and four row ball slider, large
load bearing redundancy, stable operation, high precision, long life.Steel frame structure fuselage, good rigidity, less shaking,
long time use of deformation, so that the positioning accuracy is more accurate, the load-bearing force of the machine can reach
more than a ton, Y axis adopts double screw drive, Y axis synchronization, eliminate resistance, avoid the distortion of the
gantry, so that the machine curved straight carving more smooth.Constant power 5.5KW spindle motor, vector type inverter and
constant power, imported four bearing low noise spindle, to ensure that the torsional chain is not changed at low speed to ensure
the knife service life and work efficiency, large cutting strength, high efficiency plus sliding feeding device, the weight on the
pulley to easily move.Good software compatibility, compatible Type3/Artcam/Castmate/ Ventai, fine carving and other CAD/CAM design
and production software.One-way tool cooling system, effectively improve the service life of the tool.All dustproof and waterproof
design, all-round protection of machine transmission parts.High hardness polyester board platform durable without deformation.
Dustproof, anti-static sealing computer control cabinet.The flume and the left and right baffles are all made of stainless steel,
and the platform supports are covered with zinc.
