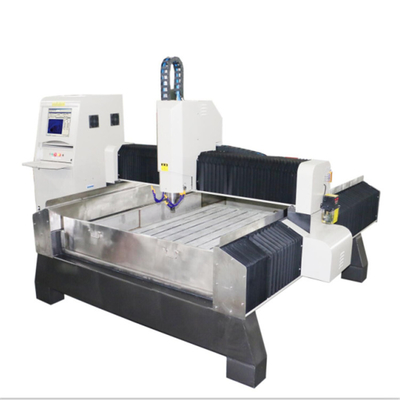

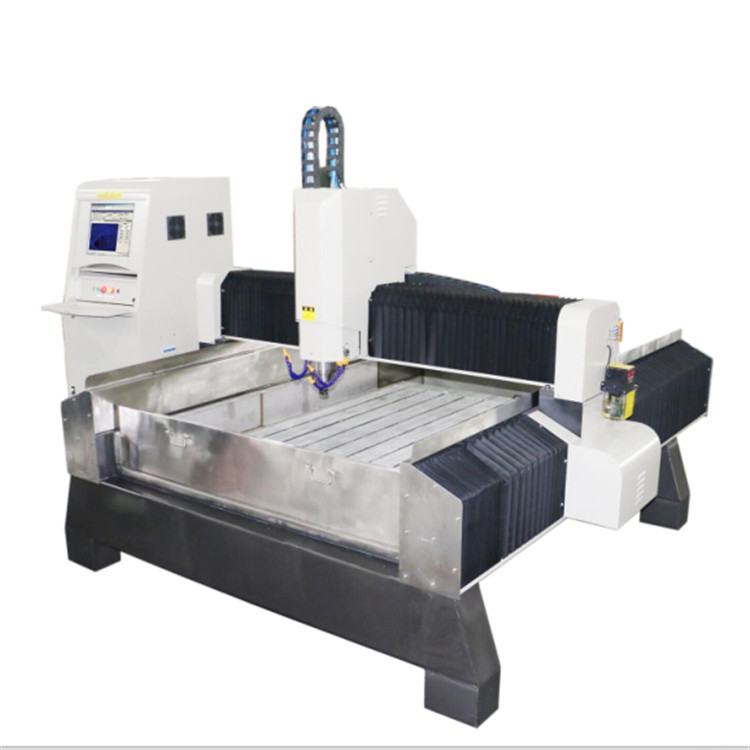

Stone cutting and engraving CNC router machine 1325 CNC Router Mchine
Technical data:
| Model | WMT-1325 | |||
| Working Area(mm) | 1300*2500 | |||
| Feeding height(mm) | 430mm | |||
| Idle speed | 15m/min | |||
| Processing speed | 10m/min | |||
| Spindle power | 7.5KW Variable frequency water cooling spindle | |||
| Rotary rate | 6000~24000 rpm/min | |||
| Working voltage | AC220V/50Hz or AC380V/50Hz | |||
| Engraving tool | Φ 3.175/4/6/12.7mm | |||
| File format | G code/ HPGL | |||
| Positioning precision | ± 0.03mm | |||
| Repeat positioning precision | ± 0.02mm | |||
| Control System | Nc Studio | |||
Standard:
Control system: Nc Studio
Driver: Leadshine servo motor 1108
Spindle: 7.5kw water cooling spindle
Guide rail and motion slides: Linear square rail and motion slides imported from Taiwan
Body: High quality steel structure welded body with large brackets
Table: T-slot aluminum table with stainless steel sink
Lubrication: Automatic oil lubricating system
Dust cover for X, Y axis
Patented box type brackets
Patented appearance
Optional
-Double independent Z axes
-DSP A11
-Panasonic, Yaskawa AC servo Motor
-High performance air cooling spindle
-Rolling ball screw transmission for X axis
-Industrial cooling system
Application:
Marble, Granite, Blue Stone, Jade, Crystal, Tomb Stone, Agate, Porcelain ,Glass, Plastic, Chemical Synthetic Board, Bamboo, Wood, Stainless Steel, Iron, Copper, Aluminum, Titanium Alloy.
Features
-Adopting imported linear square rail contributes to heavy loading, stable running, and high precision.
-Manual lubricator for option saves maintenance time and extends the lifetime of square rail.
-Employing high precision preload rolling ball screw for Z axis endures High accuracy of engraving.
-CNC control system features recovery function by remembering the working coordinate and continue to work with it after cutting of power or braking of tools
-Integrated body with gantry movement design features rigidity and non deformation.
