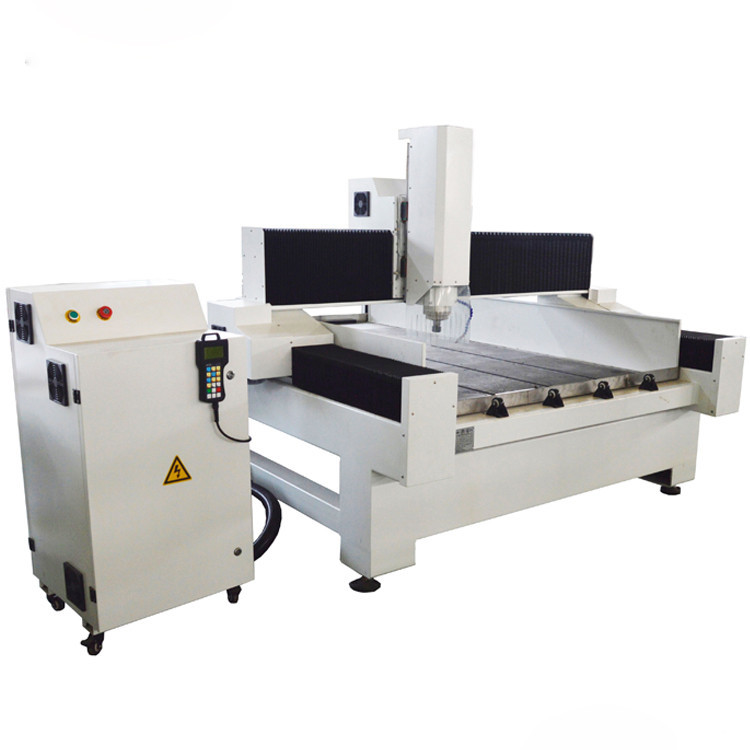

Granite Engraving Machine cnc carving marble granit cut engraver stone machine price CNC Router Machine
Feature of our granit engraver:
1. 5.5kw water cooling spindle
2. BETA inverter
3. Stepper motor
4. Stepper drivers
5. Heavy duty stone table with water tank
6. NK105 control system
7. HIWIN Linear Guide rails
8. Helical rack & TBI ball screw for transmission
9. 3PH, 380V 50HZ
Technical Data of granit engraver:
| NO. | Model | WMT9015 |
| 1 | working area | 900*1500*300mm |
| 2 | Processing precision | ±0.03mm/300mm |
| 3 | Max processing speed | 7000mm/min |
| 4 | Max travelling speed | 12000mm/min |
| 5 | Spindle power | 5.5KW water cooling spindle |
| 6 | Command | G code |
| 7 | Voltage | 3PH, AC 380V/50HZ |
| 1. Spindle |
5.5KW Water Cooling Spindle. Famous brand CS made in china, low noise. Spindle speed: 0-24000rpm |
| 2. Inverter | BETA Inverter, Fuling brand
It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control. |
| 3. Motor |
450B stepper motors With high quality & stronger power, ensure machine work very well. |
| 4. Driver |
Leadshine 860H Drivers It can run with smaller noise, lower heating, smoother movement and have better performances at higher speed.Save human strength and save time. |
| 5. Stone table with roller |
Heavy duty bed structure with water tank Special design for stone, with rollers, can help loading unloading marble...
|
| 6. Control system | NC Studio Control System, PC online NK105 controller for cnc router,USB connect,can be use without computer. |
Marble, bluestone, jade crystal, agate, glass, plastic cement, ceramic, stainless steel, titanium, copper, iron, aluminum, bamboo and other hardwood surface of virtue and sculpture.
Samples:
