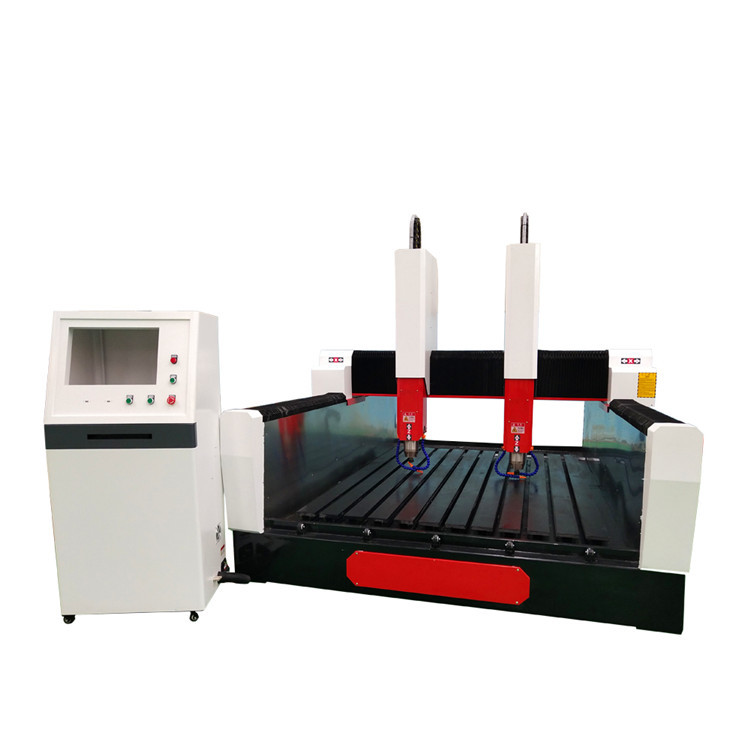

High Precision Metal Granite Headstone Engraving Machine stone CNC Router Machine
| Machine Features | Description | |
| 1300*2500mm effective working area | 8-10mm Steel gantry, big and thick square tube, heavy-duty structure | |
| Bigger welded steel tube machine body | Thicker steel tube frame with 4legs(also have 4 adjust screw), more solid and stable for the machine | |
|
5.5KW water cooling spindle 0-24000 rpm Can update spindle power accordingly |
With lower noise, easy maintenance, use industry standard ER collects, From 0-24000rpm/min. | |
| DSPA11 control system | Famous Brand control system ,computer control panel with USB | |
| Leadshine big driver | 4sets in total, double motors for Y axis, Each one for X and Z axis | |
|
Taiwan linear guide way for X,Y,Z axis |
Famous brand, can improve high precision, smooth transmission, fast speed, low noise, and it has 10 times longer life than normal |
|
| Helical rack gears for X,Y axis | 1.25M, big loading capacity, very powerful for machine, long lifetime | |
| Taiwan TBI ball screw for Z axis | Accurate precision, smooth transmission. | |
| oil lubrication system | Help lubricate the rail way, maintaining machine good performance. | |
| Soft limit switch | Help to protect machine axis. | |
| Working voltage | 380V,3phase,50HZ | |
| software | Professional software artcam software | |
| Standard Accessories equipped : |
Tool Box 1set One set of engraving cutters ER20 2 pcs collet 3.175mm 1pc ,6mm 1pc Fixture :6pcs 6.Spanner 2pcs Adjustment screw 6pcs |
|
Company profile :
Shandong WAMI CNC Technology Co., Ltd. is a manufacturer of industrial cutting ultra-high pressure waterjets. Based on years of machining experience, the company continues to research, improve and improve the current waterjet CNC machine tool technology and process status, so that the waterjet cutting equipment accuracy, efficiency and cutting ability have been better brought into play.We can configure the best solution for users according to customer needs.
More professional consulting services:The company has a dedicated technical staff responsible for customer service at any time to provide you with equipment maintenance, production technology and product use and technical advice.
The price is more favorable: Factory price,not only a company but also a factory.
Abundant Product inventory, it can meet the supply demand in time.
The company culture:"customer first,quality first"
After sales service:More professional after-sale service will be offered to you when you are our clients and Various of Waterjet cutting products
Samples:
