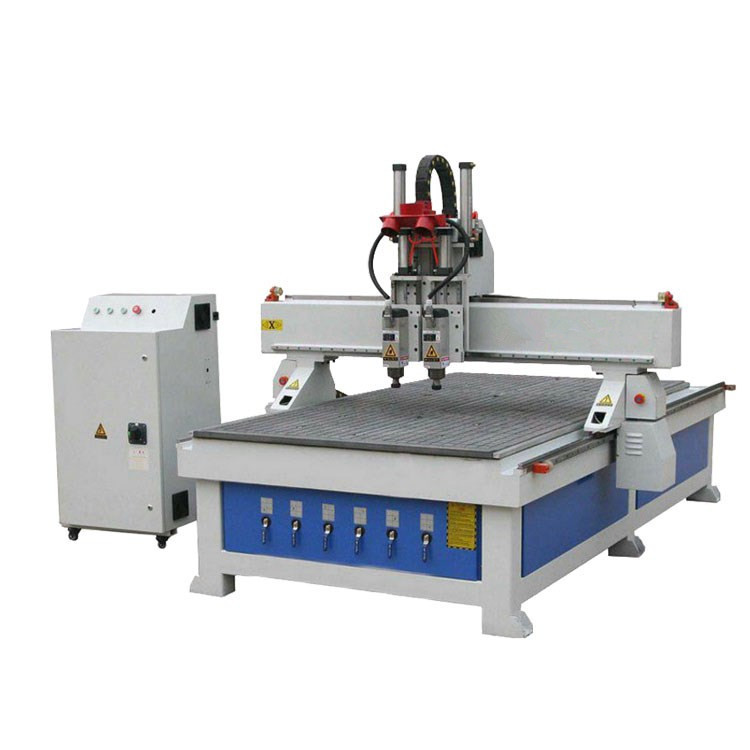

Automatic engraving machine Fully automatic CNC furniture industry machine engraving machine
|
Parameters
|
Standard Specifications ABS-1325
|
|
X,Y,Z Working Area for Panel
|
1300*2500*200mm/1500*3000*200mm/2000*3000*200mm/2000*4000*200mm
|
|
Spindle Power
|
Spindle Power
|
|
X,Y,Z Traveling Positioning Accuracy
|
±0.025mm
|
|
Table Surface
|
Vacuum adsorption table
|
|
X,Y,Z Rail and Transmission
|
X Y axis helical gear transmission, Z axis Taiwan TBI Ball Screw
|
|
Max. Rapid Travel Rate
|
25,000mm/min
|
|
Max. Working Speed
|
20,000mm/min
|
|
Spindle Speed
|
0-24,000RPM
|
|
Drive Motors
|
Stepper motor and driver
|
|
Working Voltage
|
220V
|
|
Command Language
|
G Code
|
|
Operating System
|
Mach 3(DSP for option)
|
|
Interface
|
Ethernet or USB
|
|
Software capabilities
|
Option: Vectric Aspire, Type3,Artcam, AlphaCam, Ucancam, Powermill, Solidworks,etc.
|
|
Running Environment
|
Temperature: 0℃~45℃
Relative Humidity: 30%~75% |
Product features:
Imported straght square guide rail, high precision helical rack , doble row and four row ball slider,large load bearing redundancy,stable operation,high precision,long life.Long time use of deformation,so that the positioning accuracy is more accurate,the load-bearing force of the machine can reach.
Product application;
Granite,marble,bluestone,sandstone and other stone carving, stone carving :natural marble,flower meat rock,artificial stone,tombstone,milestone,caramic tile,glass and other materials of three-dimensional relief and line carving,cutting,chamfering,drilling crafts industry.
