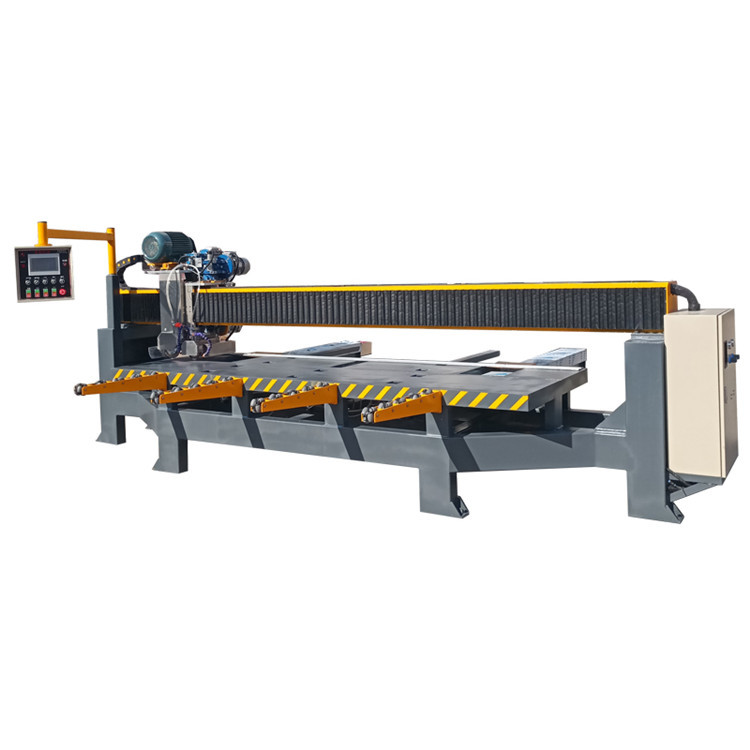

Sintered stone bridge cutting machine processing equipment CNC bridge saw cutting machine Stone Cutting Machine
1. Product introduction:
The whole machine table top is processed by gantry milling at one time. The table top universal wheel is easy to lower the board. The weight of the whole machine is 2600KG. The head plate is all aluminum. The trimming motor is a high-speed motor (pre-cutting).
Ball screw + linear guide device), automatic knife return (using double linear guide + rack and pinion structure), cutting and repairing the original edge at the same time, it is an ideal equipment for straight edge cutting of rock slab.
2. Product performance characteristics:
CNC fixed length (imported ball screw + linear guide device);
Repair the original edge while cutting;
3. Main technical parameters:
| Model | 3200 | ||
| Maximum processing length | 3200mm | ||
| Number of grinding heads | 2 | ||
| Processing thickness | 6-20mm | ||
| Working speed | 0-2m/min | ||
| Water consumption | 350L/min | ||
| Working speed | 0-3.0m/min | ||
| Weight | 2600KG | ||
| Size | 4700*2750*1800mm | ||
Cutting product display of sintered stone bridge cutting machine:
