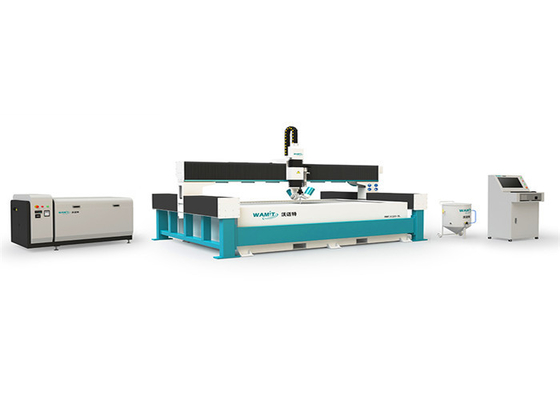

Factory 3000*2000 mm CNC laminated 20 mm Glass Mirror Water Jet Cutting Machine water jet cutter
Water jet cutter quik details:
1. Pump:420MPA pump
2. Adopt industrial PC
3. Laminated 20 mm Glass Mirror
Water jet cutter description:
Can be customized to any size, mini platform or ultra-large platform or other size can be customized.
| SPECIFICATIONS FOR WATER JET CUTTING MACHINE | ||||||
| Model | WMT 1010 | WMT 2050 | WMT 3020 | WMT 3080 | WMT 5030 | |
| Cutting table | X axis(mm) | 1200 | 2200 | 3200 | 3200 | 5200 |
| Y axis(mm) | 1200 | 5200 | 2200 | 8200 | 3200 | |
| Max.cutting range(mm) | X axis(mm) | 1000 | 2000 | 3000 | 3000 | 5000 |
| Y axis(mm) | 1000 | 5000 | 2000 | 8000 | 3000 | |
| Z axis(mm) | 250 | 250 | 250 | 250 | 250 | |
Water jet cutter application:
The application range of water jets is very wide, from metallic materials to non-metallic materials, from natural materials to artificialMaterials, from food to daily necessities, can basically be cut, and it is known as the "universal cutting machine".The main application areas are: ceramics, stone and other building materials processing, glass products processing, such as home appliances .Cutting of glass parts, architectural decoration, craft glass, metal plates in the machinery industry.Material cutting and cutting, signage and artistic pattern cutting in the advertising industry.
Water jet cutte cutting samples:
Our direct drive pump specifications:
| SPECIFICATIONS FOR DIRECT DRIVE PUMP | |
| Model | WMT SDD 20 |
| Max Pressure | 420MPa(60000Psi) |
| Continuous Operating Pressure | 350MPa-380MPa(46000 Psi -55000 Psi) |
| Max Diameter Of Orifice | 0.3mm(0.012) |
| MAX.Water Flow Rate | 3.5L/min |
| Influent Pressure | 0.4MPa |
| Power | 15KW(20HP) |
| Power Supply | 380VAC, 50Hz , 3 Phase |
| Size | 3000x800x2000mm |
Servo:
1. Selection of motors: 15kw, can save power consumption above 60%
2. Pressure conversion methods: can save energy about 35%.
3. Cutting efficiency: greatly improved by 10%-20%4. working noise is only 40DB
Abrasive feeding system:
1. No need electronic control, simple operation, reliable, maintenance-free
2. Can supply the cutting sand quantity
3. Need less than 0.2Mpa compressed gas pressure
CNC control system:
1. CNC control, apply 21 inch LCD
2. Adopt specialized NCStudio water jet cutting software, haveautosave function for next operation.
3. Apply SIEMENS PLC instead of relay, buttons are Schneider
After-sales Service
1. Field maintenance and repair service,
2. Online support, Field installation, commissioning and training, Video technical support
3. Free spare parts.
