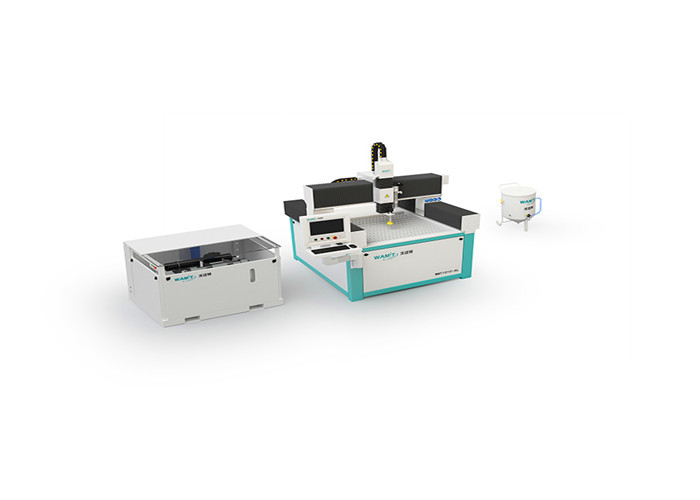

1000 * 1000 mm small water jet cutting machine with 420Mpa intensifier pump water jet cutter
What is water jet cutter?
The water jet cutting machine is a machine that uses high-pressure water jet cutting. It is currently the world's highest-capacity cutting machine. Compared with flame cutting, plasma processing, laser processing, electric discharge processing, car milling and planing, it has the same advantages. . First of all, water cutting will not generate harmful gases or liquids, and will not generate heat on the surface of the workpiece. It is a truly multi-functional, high-efficiency, cold-cutting machine.
Our water jet cutter Description:
| Name | Item | Parameter |
Intensifier Pump | Model | WMT1010 |
| motor | SIEMENS | |
| Method of Direction Regulation | Electronic direction regulation | |
| Pressure Range | 50-420MPA, continuous pressure is 330-380Mpa | |
Maximum Flow of Hydraulic | 90 L/min | |
| Maximum Discharge Capacity | 3.7 L/min | |
Maximum Diameter of Gem | 0.33 mm | |
| Power of Master Motor | 37 KW | |
| Power Source | 380V/50HZ, also work at 220V/60HZ, 415V | |
| Cutting Table | X axis Characteristic | use strong 10MM steel, 1000MM cutting range. The cutting table width is 1200mm |
| Y axis Characteristic | Cast iron is used as the foundation base , 1000MM cutting range . The cutting table length is 1200mm. | |
| Z axis Characteristic | Z axis double linear guide and four sliding block , 150MM, CAN DO 200MM | |
| Control Accuracy | ±0.01mm, cutting accuracy is | |
| linear guider | TAIWAN HIWIN BRAND | |
| Table Ctructure | Separated body, can be delivered by one 20'FCL container | |
| Driving Way | Servo drive system | |
| CNC system | Ncstudio ,Fagor | |
| Servo Motor | SIEMENS motor | |
| Cutting Head | Casting structure and Concrete structure | |
| Sealing Way | soft dustproof cloth on X,Y,Z axis,the sealing | |
| Loading Weight Water Tank | Wall thickness is 6mm,using fluorocarbon | |
| CNC Controller | Control Method | CNC |
| Display Size | 21inch LCD | |
| Model of Cutting Text | DXF | |
| Model of Computer | Industrial Control Computer | |
| Operating System | Windows 7 | |
| PLC | SIEMENS | |
| Cutting Software Advantage | Auto save and transfer common parameter | |
| Controller Displace | Can be fit to suitable place at own will | |
Automitic Abrasive | Founction | Sand storage and sand delivery |
| Operating | No need electrocnic control,sample operation | |
| Capacity | 200 kg for 8 -10hours | |
| Pressure | 0.3-0.6Mpa compresses gas pressure | |
| Color | White | |
| Water pressure | 0.15Mpa~0.6Mpa |
| Water temperature | 5°C~50°C | |
| Environment temperature | 5°C~50°C | |
| Relative humidity | ≤95%(25°C) | |
| Water turbidity | <20FTU | |
| Wireless Handle | Founction | Wireless controlling waterjet |
| Display | Real- time display condition of X,Y,Z axis | |
| Settings | Zero point, on/off valve set, X,Y,Z axis moving | |
| Technology | Advanced technology |
Water jet cutter cutting samples:
1. What are the benefits of purchasing a water jet cutting machine comparing EDM, Laser, Plasma or Machine tool?
| Requirements | Waterjet | EDM | Laser | Plasma | Machine tools |
| Cost and time efficient | Yes | No | Yes | Yes | No |
| High tolerance, precise cutting | Yes | Yes | Yes | No | No |
| No burned edges, no HAZ | Yes | No | No | No | Yes |
| Multi-head cutting | Yes | No | Yes | No | Yes |
| Steel is over 150mm thickness | Yes | Yes | No | Yes | Yes |
| No distortion or discoloration | Yes | Yes | No | No | Yes |
| Nesting yield | Yes | Yes | Yes | No | No |
| Shiny, mirror finish | Yes | Yes | No | No | Yes |
| Brittle,soft or hard material | Yes | Yes | Yes | Yes | No |
| Stainless steel, copper, brass or exotic material | Yes | Yes | No | Yes | No |
| No toxic fumes, deposits, or carbon buildup | Yes | No | No | No | No |
| Environmentally friendly | Yes | No | Yes | Yes | No |
2. What kind of material does your water jet cutting machine can cut?
There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and hastalloy
3. What's your cnc water jet cutting machine's max.cutting thickness?
Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut not more than 150MM for smooth cutting. now our Z axis distance is 170mm, we can do special for customers.
4. How we supply after-service?
Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos.
5. What's your delivery time?
Generally speaking is 30 days. if have stock, 15 days.
6. What is the cutting speed?
| Material | Thickness(mm) | Cutting Speed of 420MPa pump(mm/min) |
| Marble | 20 | 410 |
| Granite | 20 | 380 |
| Glass Bridck | 12 | 1100 |
| Glass | 5 | 1610 |
| Glue Chipped Glass | 10 | 630 |
| Sponge | 50 | 6500 |
| Foam | 50 | 6500 |
| Wood | 10 | 1350 |
| Steel | 2 | 800 |
| Laminates | 10 | 2000 |
| Aluminum | 5 | 970 |
| Copper | 5 | 460 |
| Glass Fibre Reinforced plastic | 2 | 1650 |
Our conmpany after-sales Service:
1. Field maintenance and repair service,
2. Online support, Field installation, commissioning and training, Video technical support
3. Free spare parts.
Our company:
Shandong WAMI CNC Technology Co., Ltd. is located in the High-tech Development Zone of Jinan City, Shandong Province. It is a high-tech enterprise specializing in the research and development, production, sales and technical services of CNC ultra-high pressure water jet technology application products.The main product of the company is "Ultra-high pressure CNC water cutting machine", which is the world's new cold cutting technology and advanced manufacturing equipment.It combines high-tech products in many fields such as organic-electric integration, ultra-high pressure water jet technology and numerical control automation, automatic detection and compensation, computer-aided design and manufacturing, and robot applications. It is a world-class high-tech product.The pressure range of the three-way pressure regulating valve is very large, and the use range of the three-way pressure regulating valve can be used normally from 80 to 400 MPa, and can even be used normally at higher pressures.
