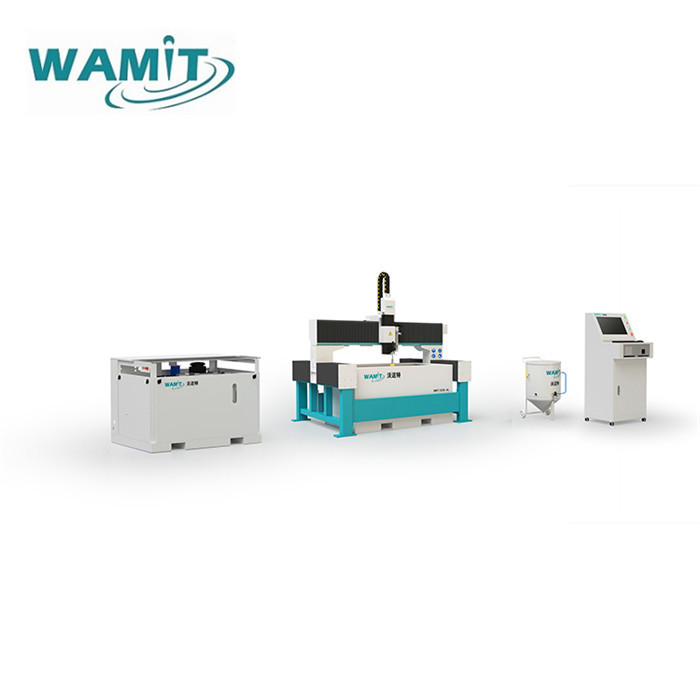

3 AXIS 1500 * 1500 mm small Abrasive water jet cutting machine 420 mpa intensifier pump water jet cutter
Water jet cutter quik details:
1. Pump:420MPA intensifier pump
2. Adopt industrial PC
3. 3 AXIS small Abrasive water jet cutting machine
Main Features:
1. Gantry type balanced design work table, solid and stable, higher strength
2. Work table of CNC motion mechanism and workpiece supporting adopts a split structure, which eliminates the influence of water gushing on cutting precision during cutting
3. X-axis,Y- axis use high quality LINDEN SWEDEN rack and pinion, TBI rail, which ensure the accuracy of bearing parts, stable conveying, hard-wearing quality. During cutting, it causes splashing sand and water. Fully enclosed lifting structure design in Z-axis prevents corrosion of lead screws and guides.
4. Lntegrated automatic lubrication system make the maintenance more automatic and easier.
5. All electric components are Schneider brand
6. Equipped with YASKAWA AC servo drive power and motor ( Japan brand), high accuracy, long service life.
FAQ:
1. What are the benefits of purchasing a water jet cutting machine comparing EDM, Laser, Plasma or Machine tool?
| Requirements | Waterjet | EDM | Laser | Plasma | Machine tools |
| Cost and time efficient | Yes | No | Yes | Yes | No |
| High tolerance, precise cutting | Yes | Yes | Yes | No | No |
| No burned edges, no HAZ | Yes | No | No | No | Yes |
| Multi-head cutting | Yes | No | Yes | No | Yes |
| Steel is over 150mm thickness | Yes | Yes | No | Yes | Yes |
| No distortion or discoloration | Yes | Yes | No | No | Yes |
| Nesting yield | Yes | Yes | Yes | No | No |
| Shiny, mirror finish | Yes | Yes | No | No | Yes |
| Brittle,soft or hard material | Yes | Yes | Yes | Yes | No |
| Stainless steel, copper, brass or exotic material | Yes | Yes | No | Yes | No |
| No toxic fumes, deposits, or carbon buildup | Yes | No | No | No | No |
| Environmentally friendly | Yes | No | Yes | Yes | No |
2. What kind of material does your water jet cutting machine can cut?
There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and hastalloy
3. What's your cnc water jet cutting machine's max.cutting thickness?
Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut not more than 150MM for smooth cutting. now our Z axis distance is 170mm, we can do special for customers.
4. How we supply after-service?
Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos.
5. What's your delivery time?
Generally speaking is 30 days. if have stock, 15 days.
6. What is the cutting speed?
| Material | Thickness(mm) | Cutting Speed of 420MPa pump(mm/min) |
| Marble |
20 30 |
410 360 |
| Granite |
20 30 |
380 250 |
| Glass Bridck | 12 | 1100 |
| Glass |
5 10 20 |
1610 725 420 |
| Glue Chipped Glass | 10 | 630 |
| Sponge | 50 | 6500 |
| Foam | 50 | 6500 |
| Wood |
10 50 |
1350 270 |
| Steel |
2 4 6 8 10 15 20 60 |
800 570 520 360 260 150 60 26 |
| Laminates | 10 | 2000 |
| Aluminum | 5 | 970 |
| Copper | 5 | 460 |
| Glass Fibre Reinforced plastic |
2 | 1650 |
7. What is the cutting t materials?
| Alloy Steel | Steel Hardened | |
| Aluminum | Steel Hard Rolled | Porcelain |
| Armor Plate | Steel Mild | PVC |
| Brass | Steel Tool | Rubber |
| Boron | Tantalum | Thermoplastics |
| Bronze | Tin | Teflon |
| Cast Iron | Titanium | Urethane |
| Cobalt | Tungsten | Vinyl |
| Copper | Wrought Iron | Armor Plate |
| Exotic Alloys | Zinc | Bullet Proof Glass |
| Hastalloy | Acrylics | Glass |
| Hardened Steel | Ceramics | MIrror Glass |
| Hot Rolled Steel | Composites | Ceramic Tile |
| Inconel | Foam | Granite |
| Kevlar | Fiberglass | Limestone |
| Magnesium | Kevlar | Marble |
| Mild Steel | Mylar Laminates | Pocelain |
| Nickel Alloys Stainless | Nylon | Terrazzo |
| Steel | Plastic | Hardwood |
| Steel Alloy | Plexiglass |
Water jet cutter cutting samples:
Company profile:
We have 420Mpa intensifier pump, 600Mpa intensifier pump ,direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality - efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. all machines are with one-year warranty of main parts, whole-life after-service for the entire machine.Our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to 30-50m/min so that reduce you 15%-50% cutting cost according to the materials.
