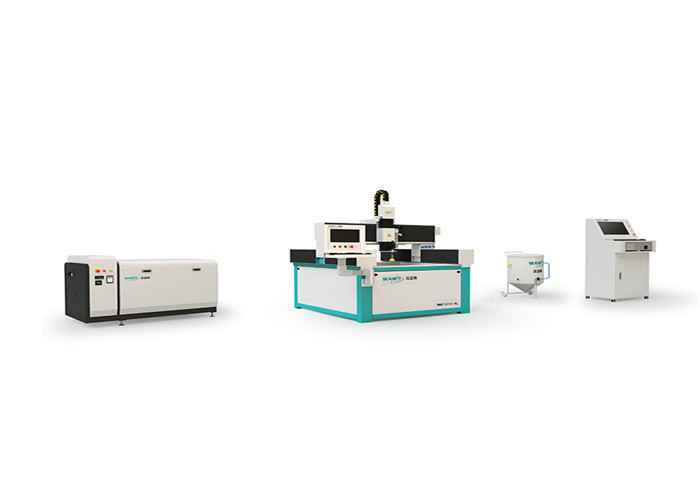

1000 * 1000 mm small water jet cutter 60000 psi direct drive pump water jet cutter
Our water jet cutter quik details:
1.Pump: 60000psi direct drive pump
2.Adopt industrial PC
3.Small water jet cutting
Our water jet cutter Features:
1. Gantry type balanced design work table, solid and stable, higher strength
2. Work table of CNC motion mechanism and workpiece supporting adopts a split structure, which eliminates the influence of water gushing on cutting precision during cutting
3. X-axis,Y- axis use high quality LINDEN SWEDEN rack and pinion, TBI rail, which ensure the accuracy of bearing parts, stable conveying, hard-wearing quality. During cutting, it causes splashing sand and water. Fully enclosed lifting structure design in Z-axis prevents corrosion of lead screws and guides.
4. Lntegrated automatic lubrication system make the maintenance more automatic and easier.
5. All electric components are Schneider brand
6. Equipped with YASKAWA AC servo drive power and motor ( Japan brand), high accuracy, long service life.
Our water jet cutter specification:
| Model | WMT1010-AL |
| Video outgoing-insp | Provided |
| Marketing Type: | New |
| Voltage: | 220V/380V/415V |
| Size(L*W*H) | 1000*1000mm |
| Condition: | NEWEST |
| Continuous Working | 350-380mpa |
| Power Requirement | (415v/50hz), 380V/50HZ, ( 220v/60hz), 3 phrase |
| Rated Power | 15kw |
| Weight (KG) | 3000 |
Application:
The application range of water jets is very wide, from metallic materials to non-metallic materials, from natural materials to artificialMaterials, from food to daily necessities, can basically be cut, and it is known as the "universal cutting machine".
1. Automotive industry: interior decoration (ceiling, carpet, trunk lining, dashboard, door panel), fiberglass body parts (depending on the car model), insulation, firewall, under the hood, foam, truck underlay, bumper
2. Electronic product:Circuit board (installed and not installed), cable stripping (insulation sleeve)
3. Catering:Meat processing (frozen fish, chicken nuggets or strips, etc.), vegetable slices (celery, mushrooms, etc.), snacks/cake products
Our water jet cutter cutting speed:
| Material | Specification | Speed(mm/min) | |
| Servo direct drive pump | Hydraulic intensifier pump | ||
| Carbon steel plate | 10mm | 330 | 270 |
| 12mm | 280 | 220 | |
| 14mm | 240 | 180 | |
| 16mm | 200 | 140 | |
| 20mm | 170 | 110 | |
| 22mm | 140 | 85 | |
| Aluminum plate | 12mm | 800 | 600 |
| 30mm | 200 | 160 | |
| Glass | 5mm | 2000 | 1600 |
| 8mm | 1800 | 1400 | |
| 10mm | 1500 | 1100 | |
| 12mm | 1200 | 900 | |
| 14mm | 1000 | 700 | |
| Ceramic tile | 12mm | 2000 | 1500 |
| 14mm | 1400 | 900 | |
| Microcrystal stone | 16mm | 1200 | 900 |
| Marble | 25mm | 1000 | 800 |
| 30mm | 800 | 600 |
|
Water jer cutter cutting samples:
Customer Service:
We have exported to more than 20 countries yet, and now have agent in America, Russia,South Africa,Ecuador,UK,Argentina,Chile,Mexico,Austrilia,Saudi Arabia and other GCC countries, Malaysia,Vietnam. we can arrange engineers go to customer's factory if no agents in their country.
