New technology Generation Two HP Servo Direct Drive Water Jet Pump 435MPA

1 set
MOQ
New technology Generation Two HP Servo Direct Drive Water Jet Pump 435MPA
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: China
Brand Name: WAMIT
Rated Power: 15 Kw
Certification: CE, ISO
Warranty: 1 Year
Weight (KG): 560
Key Selling Points: Multifunctional
Local Service Locati: Malaysia, Australia, Morocco, South Africa, United Kingdom, Unite
Product Name: HP Servo Direct Drive Pump
Continuous Working Pressure:: 43000-55000 Psi
Basic Infomation
Place of Origin: CHINA
Brand Name: WAMIT
Certification: CE,ISO
Model Number: WMT SDD 20
Payment & Shipping Terms
Packaging Details: wooden case or carton case or your requests
Delivery Time: 15
Payment Terms: L/C, T/T
Supply Ability: 800 Piece/Pieces per Year
Product Description

Generation two HP servo direct drive pump for waterjet cutting pump



About WAMIT waterjet cutting machine

1. CNC forming a variety of complex patterns;
2. Cold cutting, no thermal deformation or thermal effect;
3. Environmental protection, no pollution, no toxic gas and dust;
4. Can process a variety of high hardness materials, such as: glass, ceramics, stainless steel, etc., or relatively soft materials, such as: leather, rubber, diapers, etc.;
5. It is the only means for complex processing of some composite materials and fragile porcelain materials;
6. Smooth incision, no slag, no secondary processing;
7. Drilling, cutting and molding can be completed at one time;
8. Low production cost;
9. High degree of automation;
10.24 hours of continuous work

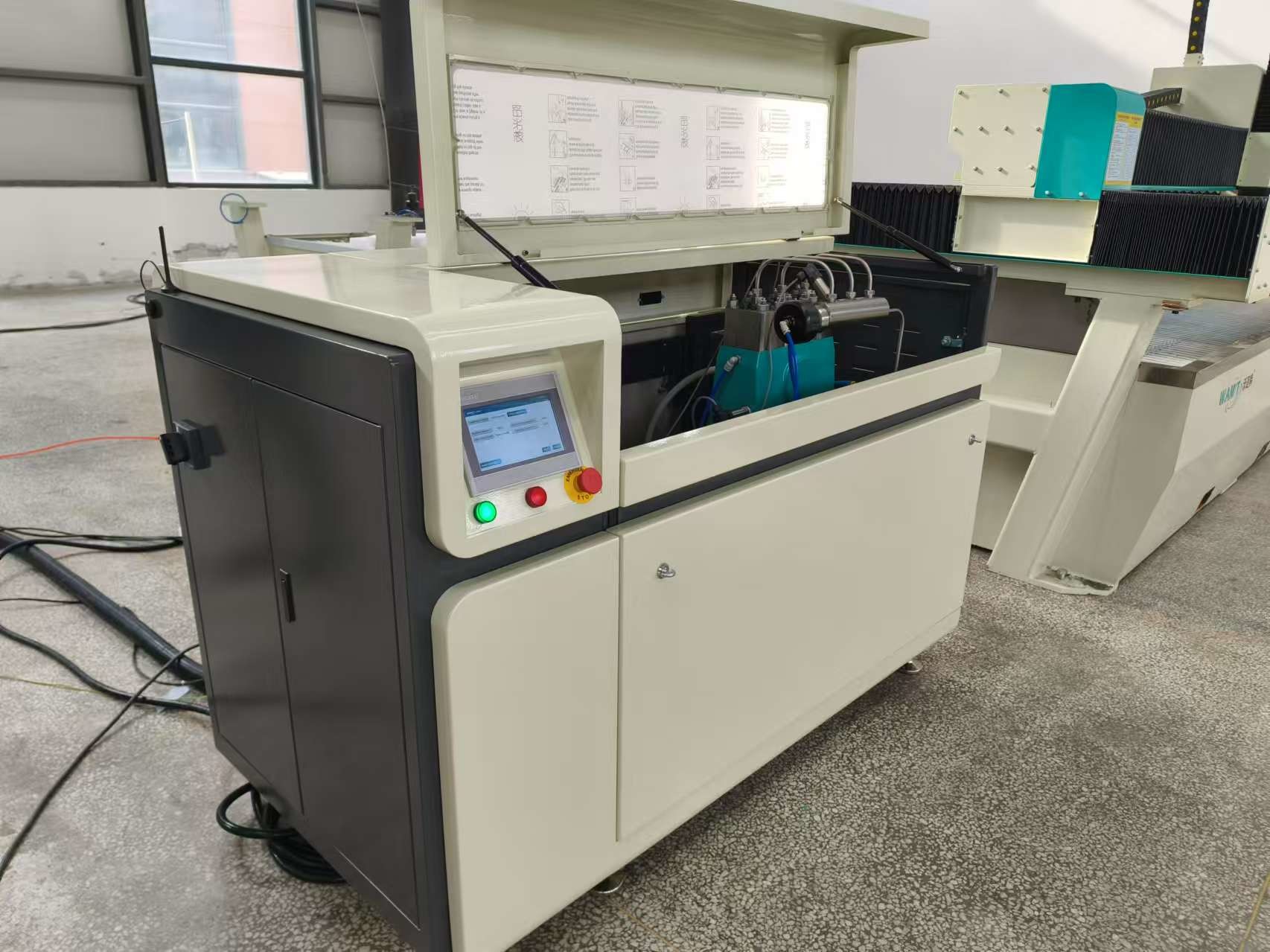

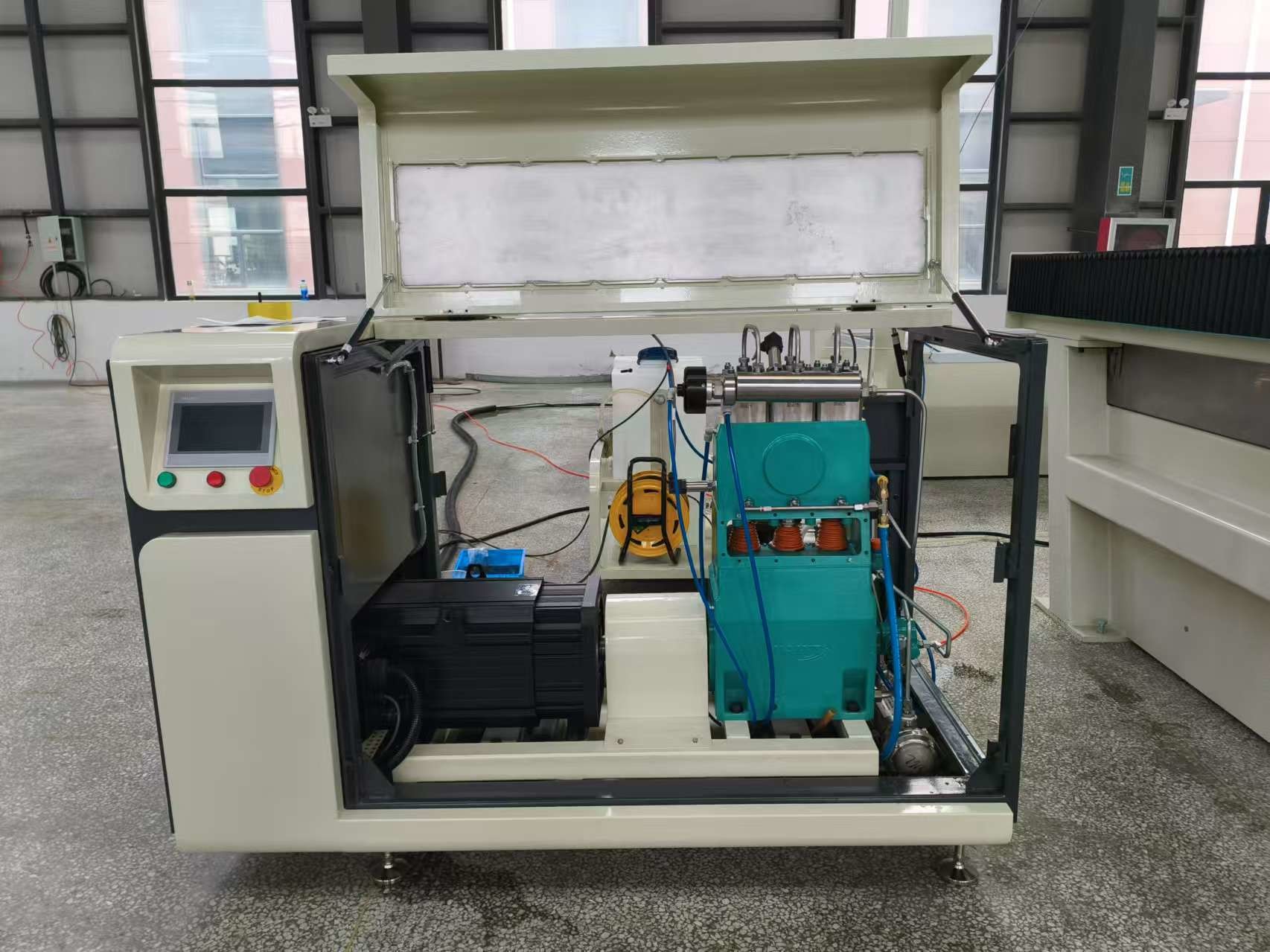

Waterjet servo direct drive pump
New technology Generation Two HP Servo Direct Drive Water Jet Pump 435MPA 0New technology Generation Two HP Servo Direct Drive Water Jet Pump 435MPA 1
Performance and parameters
MODEL :WMT SDD II 40
MAX PRESSURE :435MPa
Continuous working pressure :370-380MPa
Max orifice diameter :0.43mm
Flow rate :5.6 l/min
Inlet water pressure :0.4MPa
Motor power :30KW
Dimension :1800mm X 900mm X 1200mm
Booster and piping system (high-pressure cylinder, plunger rod, high-pressure seal, low-pressure seal, high-pressure piping, check valve, etc
Dual-row filtration system (5 Micron, 1 micron, in series)
Fully automatic servo control system, output pressure control mode
Intelligent start-stop function
Automatic shutdown for overpressure and automatic protection for underpressure
Power supply:380VAC, 50Hz , 3 Phase



Power is only 30kw, which can save you 60% to 70% of the cost

servo direct drive pump represents a new generation of high-efficiency, energy-saving ultra-high pressure pump, which is the first large R&D in China. Servo motor driven direct drive intensifier system.

WAMIT SECOND GENERATION DIRECT DRIVE PUMP CUTTING SPEED SHEET

material
thickness(mm)
Cutting pressure		 Max cutting speed
(mm/min)
Cutting result

















Carbon steel
6
370
850

8
370
650

10
370
550

16
370
300

20
370
220

30
370
140

75
370
40

100
370
22

125
370
10






Titanium alloy
10
370
800

20
370
260

45
370
100

100
370
26










aluminum
6
370
2500

8
370
1800

20
370
650

30
370
350

40
370
260









Stainless steel
6
370
850

8
370
650

13
370
500

16
370
300

56
370
45









glass
5
370
7000

8
370
3000

12
370
1600

15
370
900

19
370
650




ADVANTAGE OF WAMIT SECOND-GENERATION DIRECT DRIVE PUMP:
The second-generation WAMIT servo direct-drive pump adopts world most advanced technology and processes . Whether in terms of performance, quality, functionality or operation, there have been significant improvements. The features are summarized as follows::
1,Performance is efficient:The maximum pressure can reach 435MPa, with a continuous working pressure of 370-380MPa and pressure fluctuation range of ±0.5MPa. This continuous and stable high-pressure output increases the cutting speed by 50%-60% compared hydraulic intensifer pumps of the same pressure, significantly enhancing production efficiency.
2,Intelligent maintenance:This product is equipped with a remote control system, which can assist users with remote after-sales service, avoiding losses caused by improper settings.
3,more flow rate:The largest orifice diameter is 0.43mm, with a flow rate of 5.6L/min, allowing customers to achieve higher and quality when making precise cuts.
4,longer using life of easy-wear spare parts:The second-generation direct-drive pump adopts world-leading hard-sealing technology, greatly extending the service life of consumable parts, reducing the frequency of maintenance and lowering the usage cost..
5,Simplified maintenance:Adopting the new integrated assembly process, the maintenance time is reduced by 50%, making maintenance simpler and more convenient.

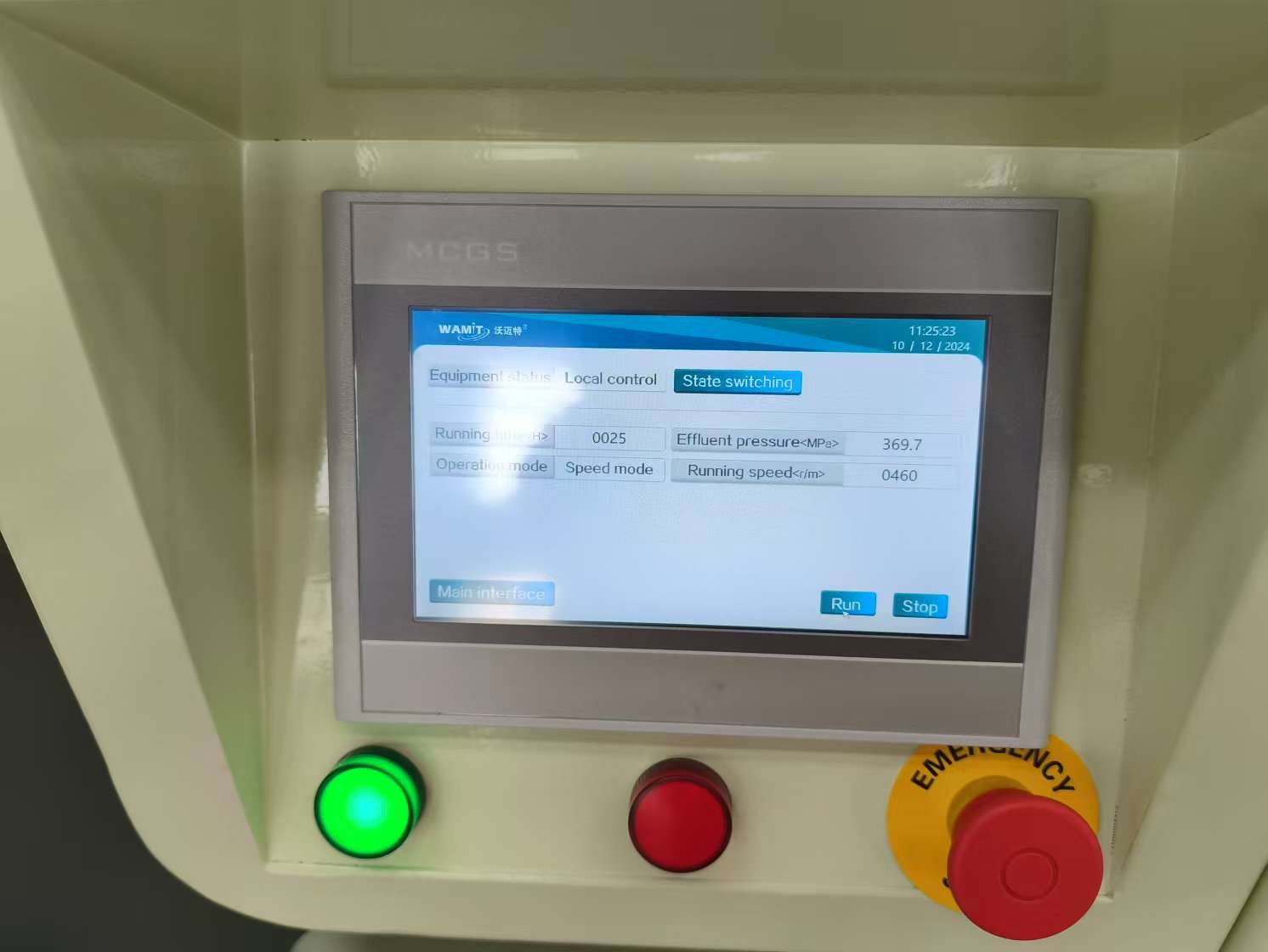

6,Easy to operate:Equipped with an HD touch screen, the parameters such as pressure, duration, mode, and speed are intuitively displayed, making adjustments simpler and convenient, enhancing the operational experience and work efficiency..
7,Automatic water supply:Equipped with an automatic water supply system, it monitors the water level in real time. If there is no continuous water supply, the system will emit a buzzing alarm; if the water level is too low, it will automatically shut down to avoid equipment damage caused by human error, thus further enhancing the reliability the equipment..
8,Intelligent alarm system :Configure multiple intelligent alarm systems, including servo driver alarm, water supply pressure alarm, maintenance alarm, water level alarm, oil pressure alarm, etc. alarm information will be displayed in real-time on the touch screen to help users quickly identify and resolve issues..
9,Digital platform system:Built-in remote digitalization platform system, users can monitor the operation status of the equipment in real time through mobile and web terminals. The system can statistics the daily operation time, working time, power consumption and income of the equipment, and warn of equipment problems in advance to ensure long-term stable operation of the machine.
10,Energy saving and electricity conservation :The power is only 30kw, compared to the hydraulic intensifier pump with the same flow and pressure (the power of the same hydraulic is 75kw), its energy efficiency is greatly improved. This advantage not only greatly reduces operating costs but also reduces energy consumption, meeting the modern manufacturing industry requirements for energy saving and emission reduction..
11,Environmental protection:It replaces traditional hydraulic systems, reduces the use of hydraulic oil, and is equipped with self-cooling functions, effectively reducing equipment pollution; low noise (noise does not exceed 75dB), the noise level is equivalent to that of ordinary diesel cars, and it is more environmentally friendly
12,Good design appearance:In addition to the rationality of its own structural design, the second-generation direct-drive pump, due to the absence of a hydraulic system, avoids problem of hydraulic oil leakage, eliminating oil pollution and making the equipment appearance cleaner and more tidy..

Specifications:

Cutting Accuracy(mm)
0.005
Voltage 380/220/400VAC, 50Hz ,3 phase
Rated Power 30KW
Dimension(L*W*H) 1800*900*1200mm
Weight (KG) 800KG
water inlet pressure 0.4MPA
Max. water discharge 5.6L/min
Max. diameter of orifice 0.43MM
Continuous operating pressure 370-380Mpa
Max. operating pressure 435MPa(63000 psi)
Pump type direct drive pump
Model
WMT SDD II 40
