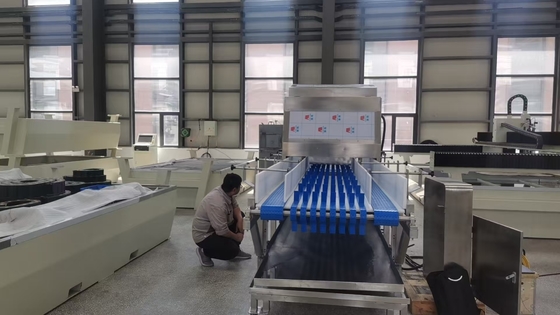

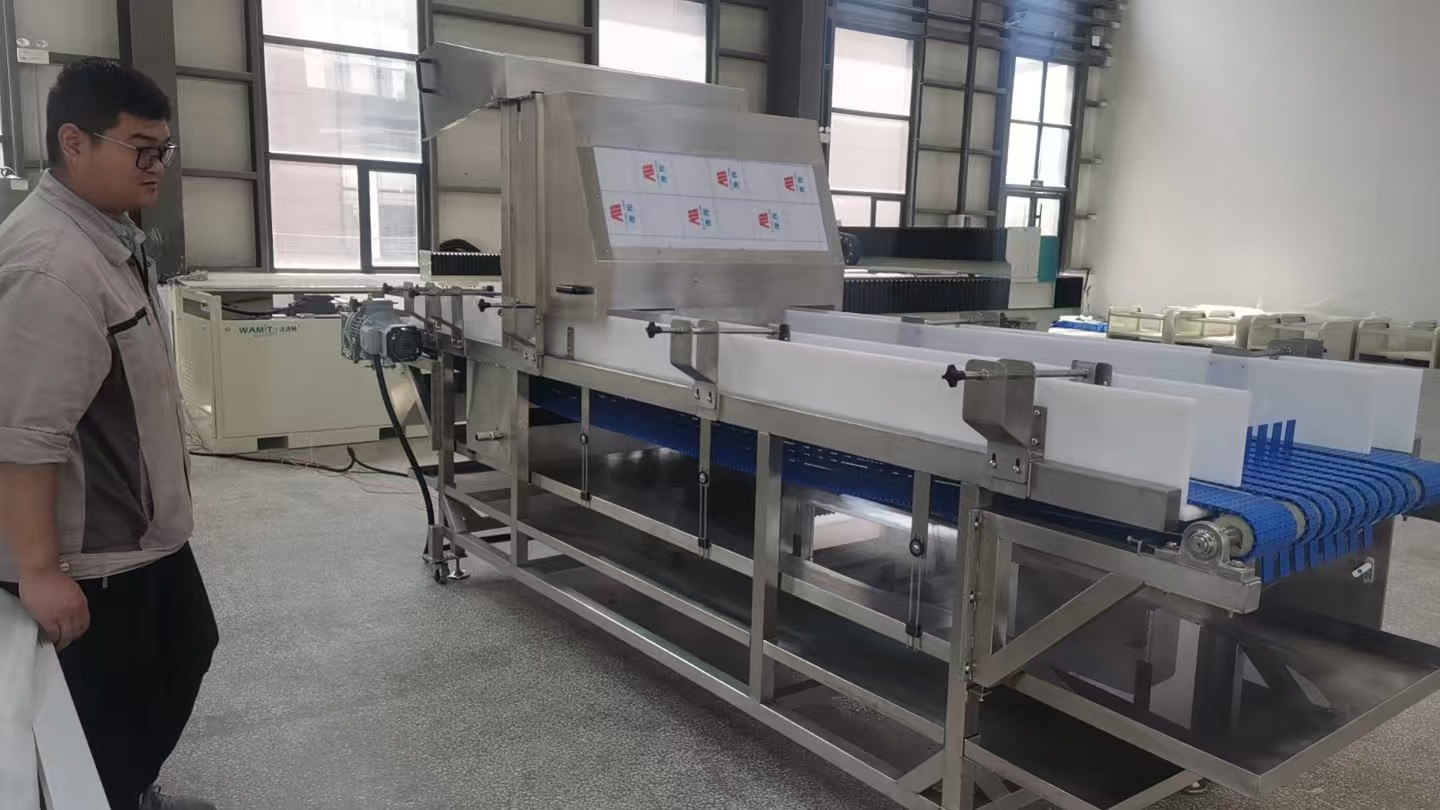

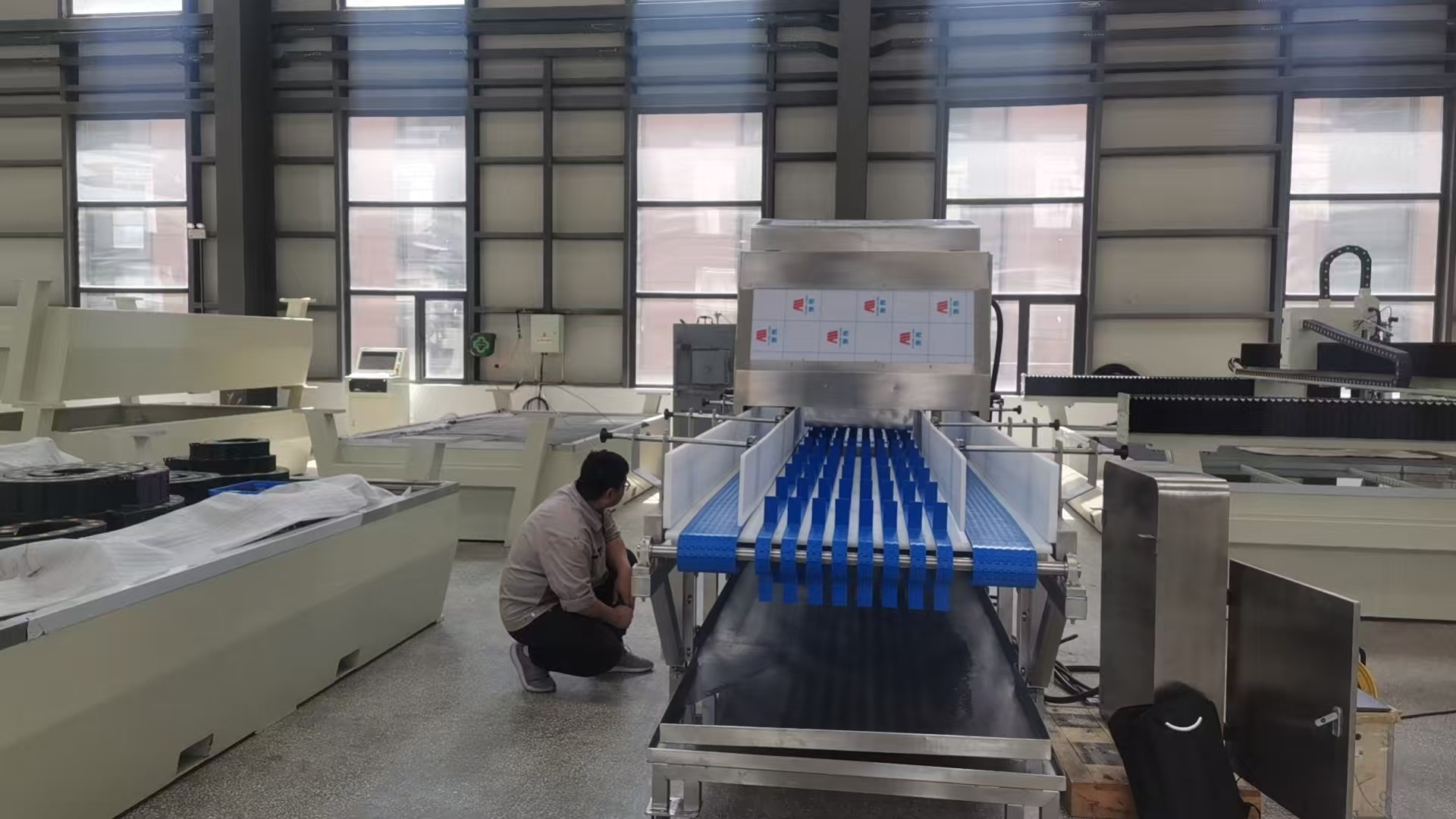

WAMIT waterjet cutter cut vegetables by pure water
Alloy Steel
Aluminum
Armor Plate
Brass
Boron
Bronze
Cast Iron
Cobalt
Copper
Exotic Alloys
Hastalloy
Hardened Steel
Hot Rolled Steel
Inconel
Kevlar
Magnesium
Mild Steel
Nickel AlloysStainless Steel
Steel Alloy
Steel Hardened
Steel Hard Rolled
Steel Mild
Steel Tool
Tantalum
Tin
Titanium
Tungsten
Wrought Iron
Zinc
Acrylics
Ceramics
Composites
Foam
Fiberglass
Kevlar
Mylar Laminates
Nylon
Plastics
Plexiglass
Porcelain
PVC
Rubber
Thermoplastics
Urethane
Vinyl
Armor Plate
Bullet Proof Glass
Glass,Mirror Glass
Ceramic Tile
Granite
Limestone
Marble
Porcelain
Terrazzo
Hardwood
food vegetables
| WMT200 1010 | WMT200 1212 | WMT200 1515 | |||||
| Platform size | X-axis | 1200mm | 1400mm | 1700mm | |||
| Y-axis | 1200mm | 1400mm | 1700mm | ||||
| Cutting stroke | X-axis | 1000mm | 1200mm | 1500mm | |||
| Y-axis | 1000mm | 1200mm | 1500mm | ||||
| Z-axis | 150mm | 150mm | 150mm | ||||
| Cutting accuracy | ±0.1mm | ||||||
| Repeated positioning accuracy | ±0.05mm | ||||||
| Driving mode | Ac servo | ||||||
| Maximum operating speed | 50000mm/min | ||||||
| WMT200 3015 | WMT200 3020 | WMT200 3112 | WMT200 3515 | WMT200 4020 | WMT200 6020 | ||
| Platform size | X-axis | 3200mm | 3200mm | 3300mm | 3700mm | 4200mm | 6200mm |
| Y-axis | 1700mm | 2200mm | 1400mm | 1700mm | 2200mm | 2200mm | |
| Cutting stroke | X-axis | 3000mm | 3000mm | 3100mm | 3500mm | 4000mm | 6000mm |
| Y-axis | 1500mm | 2000mm | 1200mm | 1500mm | 2000mm | 2000mm | |
| Z-axis | 150mm | 150mm | 150mm | 150mm | 150mm | 150mm | |
| Cutting accuracy | ±0.1mm | ||||||
| Repeated positioning accuracy | ±0.05mm | ||||||
| Driving mode | Ac servo |
|
|||||
Advantages:
| The X/Y axis uses a new labyrinth protection. |
| Japan River Valley automatic lubrication system. |
| Internal components adopt the German Schneider brand. |
| Absolute value motor, no zero detector, with power off memory function. |
| International brand AC servo drive power supply and motor. |
1.Type of pressurization is hydraulic. (The water is pressurized by using the fluid pressure intensification principle).
2.Max. oil discharge is 90 L/min
3.Max. water discharge is 3.8L/min
4.Max. diameter of orifice is 0.33mm
5.Max. operating pressure is 420MPa(60000 psi)
6.Continuous operating pressure is 350-380MPa
7.Power requirement : 37KW, 3 phrase, 380V/50HZ, can do 220V/415V.
8.Type of shift is electronic
9.Maintenance free accumulator is originally imported from TAIWAN.
10.Intensifier assembly is imported from USA
11.With SIEMENS motor and SIEMENS PLC and the motor is variable pump so that can reduce using cost.
12.all electric components are Schneider brand.
