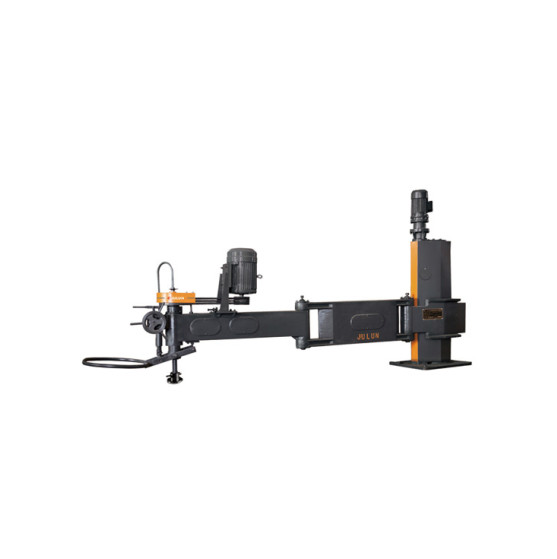

marble granite slab marble machine Hand Operated Stone Polishing Machine
Stone polishing machine features :
1. we uses round column as its guide slip surface for steady automatic lifting up and down.
2. The main drive has two kinds:single speed and double speeds.The machine is applicable to plane grinding and polishing of slabs with greatly various thickness,tombstones,and stone with design.
3. The worktable can be selected for grinding crafts camber inside and outside.
Stone polishing machine usage :
The machine adopts a cylinder as the lifting guide sliding surface, which automatically rises and falls smoothly. The main engine is divided into single and double speed. It is used for surface grinding and polishing of plates, tombstones, parquet stones, etc. whose thickness changes frequently. It can be equipped with a worktable to grind the inner and outer arc craft stone.
Stone polishing machine specification :
| ITEM | SF-2500 | ||
| Gyro radius | mm | 2500 | 3000 |
| Max.spindle lifting stroke | mm | 80 | |
| Max.lifting stroke | mm | 470 | 470 |
| Water consumption | m3/h | 1 | |
| Air consumption | kW | 5.5 | |
| Total power | kW | 6.1 | 6.1 |
| Dimension(LXWXH) | mm | 3200X1650X1800 | 3800X1650X1800 |
| Weight | kg | 750 | 850 |
