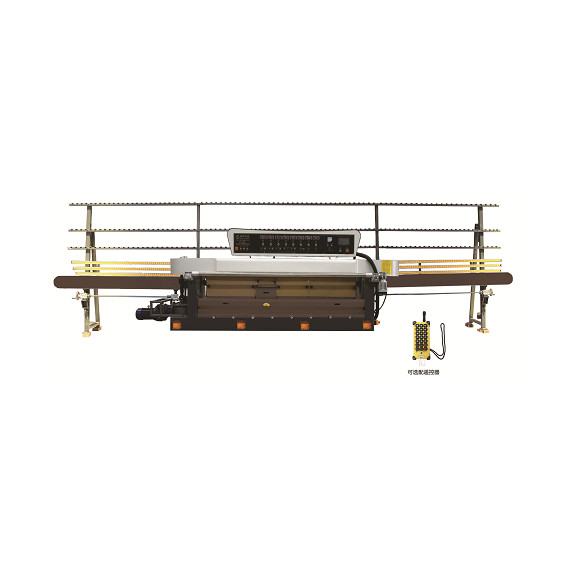

8 head full-automatic round edge machine CNC stone polishing machine
stone polishing machine advantages :
8 heads full-automatic round edge machine is suitable for all round and round sides of stone, French side, 21# side, 407# side, straight bottom edge 45 degree chamfer, slotted light (chicken mouth) sea bream back cut and so on The profiled edge, the rough grinding, the fine grinding and the polishing process are completed at one time, and the brightness after processing is higher than the brightness of the plate surface. After the wear of the polishing wheel is consumed, the motor can automatically raise the grinding wheel to compensate during the running process.
CNC stone polishing machine Features :
The CNC round edge machine adopts numerical control, configuration touch screen, and automatic hand-held machine, which can be manually and automatically separated. It is equipped with a 20mm diameter grinding wheel. The diameter of the water tank is large, the refueling is quick and convenient, the water mill removes dust, reduces dust pollution, and greatly improves the working environment.
After the polishing wheel is worn, the motor can automatically raise the grinding wheel during operation to save time and improve efficiency.
The guide rail can be lifted synchronously, and is not limited by the size of the stone. The minimum processing size is 10-80mm*50mm.
The automatic production mode adopted by the machine can meet the needs of customers for the production of stone wire type, and the finished products meet the national and export inspection standards.
Adopting infinitely variable speed, the feeding speed and the amount can be adjusted during the working process. The maximum processing speed is 5m/min. The normal use of the machine is equivalent to 15 people working in normal stone processing, and the process defects caused by the workers are eliminated.
CNC stone polishing machine Technical Parameters
| Feed output speed | 0.8m-5m/minute |
| The minimum processing size of stone | 10-80mm thickness*80mm length |
| Total power | 36KW |
| Body weight | 3100KG |
| Boundary dimensions | 7300mm*1100mm*2000mm |
CNC stone polishing machine polishing heads :
CNC stone polishing machine polishing samples:
