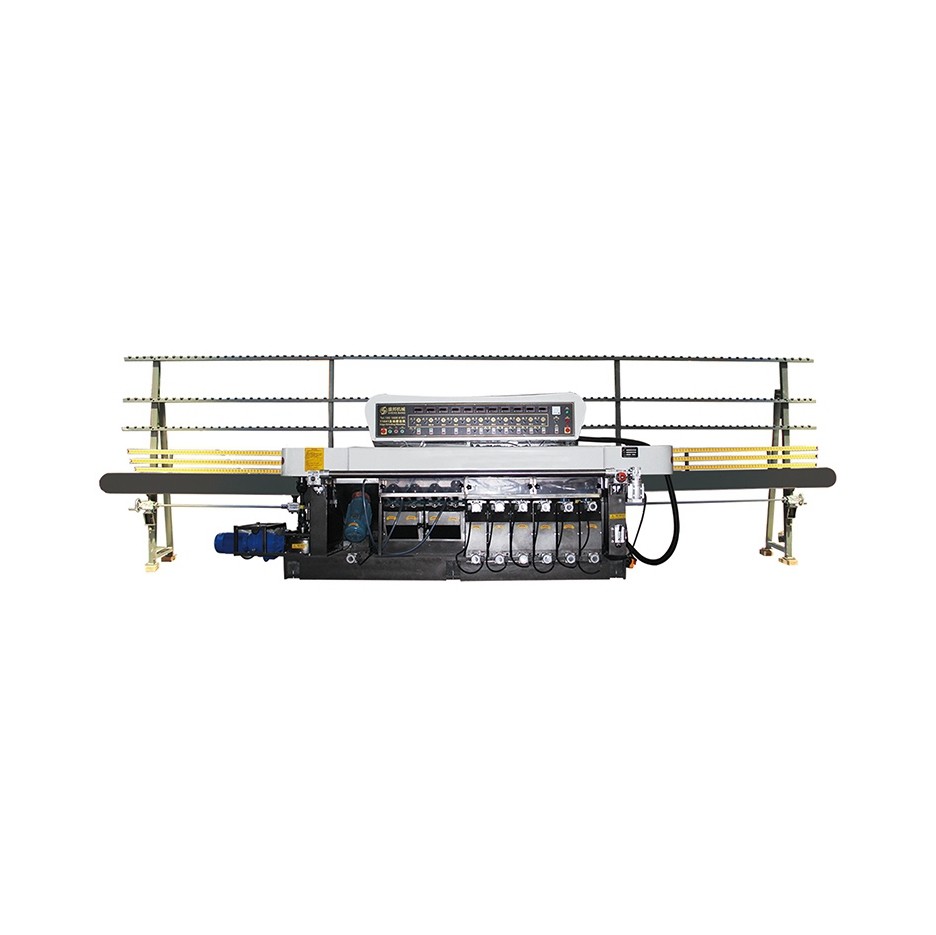

11 heads Automatic multifunctional straight edge chamfering machine marble granite and stone polishing machine
straight edge chamfering machine advantages :
The grinding wheel of this machine adopts water grinding plate, equipped with snail buckle joint, electric adjustment motor to move back and forth, up and down, according to different sizes and thickness of the stone.
straight edge chamfering machine Features :
it can grind the right-angle bottom edge, thickened straight edge and straight bottom edge 45° Chamfering, straight edge forming, back cutting of begonia angle (the first 300-350mm saw blade can be configured for back cutting, back cutting and side polishing can be completed at one time), polishing, rough grinding, fine grinding, and polishing processes are completed at one time , The brightness after processing is higher than the brightness of the board surface, the structure is advanced and reasonable, the precision is high, the efficiency is fast, the operation is convenient, and the maintenance is simple. The feeding speed and the amount can be adjusted during the grinding process. The maximum processing is 5m/min. The machine is in normal use It is equivalent to the workload of 15 people in normal stone processing, and eliminates the process defects caused by workers during processing.
straight edge chamfering machine Technical Parameters
| Feed output speed | 0.8m-5m/minute |
| The minimum processing size of stone | 10-80mm thickness*80mm length |
| Total power | 40KW |
| Body weight | 3200KG |
| Boundary dimensions | 7500mm*1000mm*2000mm |
CNC stone polishing machine polishing heads :
