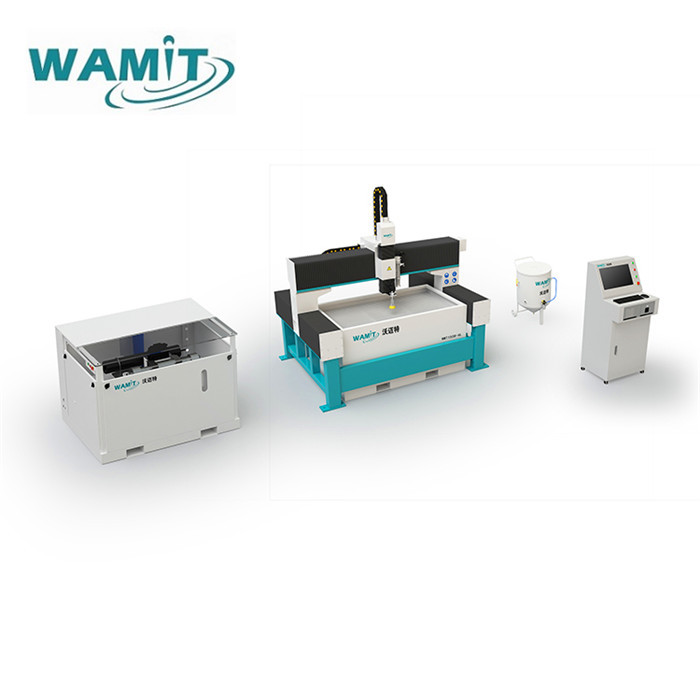

1500 * 1500 mm aluminum profile sheet cnc metal water jet cutting machine water jet cutter
Water jet cutter advantages:
1. We promise 1 year ( 2000 hours) warranty always. and have got CE certificate.
2. We use flow type ECL cutting head, the cutting efficiency is at least 10% higher.
3. The abrasive sand hopper beside the cutting head is also FLOW design.
4. We have new technology that can make the machine moving speed is to 30m/min. normal speed is 6m/min as you see. if this
technology used in pure water cutting, the cutting cost will reduce 50%. if using other materials cutting like glass , marble,
steel, the cutting cost will also 20-30% reduced. but of course , the machine with this function price will be a little higher.
5. We use soft cover of the linear guider, can prevent dust away from the linear guider, so keep the linear guider keep precision
longer.
6. We assemble an auto oil feeding to linear guider, so customer needn't maintenance the linear guider always.
7. Seperated body.
8. We will send a remote control pendent.
9. We have the world most convenient abrasive sand removing system. it can be used for any brand water jet cutting machine, maybe
you can promote this system in your country and other countries. please check the attachment.
11. We supply 420mpa pump with 37KW motor, but the price of the whole machine is very competitive now
12. We use variable pump, so can reduce electricity cost for customers.
Water jet cutter Application:
It is used in the manufacture of outer casings of machinery and equipment, glass cutting of household appliances, ceramic, stone and other construction materials processing, composite materials, bulletproof materials and other special materials one-time forming and cutting processing, and water cutting of soft materials.
Water jet cutter Specification:
| Model | WMT1515-AL |
| Cutting accuracy | +/- 0.1 mm |
|
Pump motor |
SIEMENS |
| Max pressure PRESSURE | 420mpa |
| Continuous working | 350-380mpa |
|
X axis Characteristic |
use strong 10MM steel,1500MM cutting range. The cutting table width is 1700mm |
|
Y axis Characteristic |
Cast iron is used as the foundation base , 1500MM cutting range . The cutting table length is 1700mm. |
|
Z axis Characteristic |
Z axis double linear guide and four sliding block , 180MM, CAN DO 200MM |
|
linear guider |
TAIWAN HIWIN BRAND |
| Way of drive | servo motor and driver |
|
CNC system |
Ncstudio ,Fagor |
|
Operating System |
Windows 7,10 |
|
Technology |
Advanced technology |
Water jet cutter cutting samples:
Customer Service:
We have exported to more than 20 countries yet, and now have agent in America, Russia,South Africa,Ecuador,UK,Argentina,Chile,Mexico,Austrilia,Saudi Arabia and other GCC countries, Malaysia,Vietnam. we can arrange engineers go to customer's factory if no agents in their country.
Our company introduction:
We have 420Mpa intensifier pump, 600Mpa intensifier pump ,direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality - efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. all machines are with one-year warranty of main parts, whole-life after-service for the entire machine.Our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to 30-50m/min so that reduce you 15%-50% cutting cost according to the materials.
