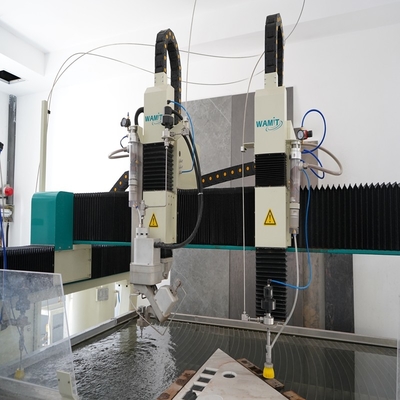

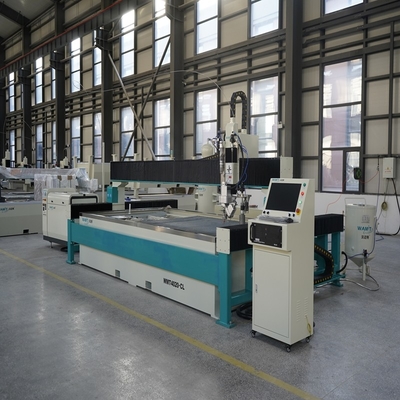

WMT2040-AL double heads 3 axis and AC 5 axis 2000*4000mm Water Jet Cutter for marble cnc cutting
The 5-Axis Water Jet Cutting Machine is a cutting-edge solution for precision cutting in various industries. With a maximum flow rate of 3.7L/min, this 5-Axis Abrasive Water Jet Cutter offers exceptional cutting efficiency and speed.
One of the key features of this 5-Axis CNC Water Jet Cutting System is its cutting accuracy of 0.1mm, ensuring that even the most intricate designs can be achieved with precision and consistency. Whether you are working on small-scale projects or large industrial applications, this machine delivers reliable and high-quality results.
Weighing at 3500KG, this 5-Axis Water Jet Cutter is robust and stable, providing a solid foundation for cutting operations. The total weight of the machine contributes to its durability and reliability, making it suitable for continuous use in demanding manufacturing environments.
Equipped with a working power of 37KW, the 5-Axis Water Jet Cutting Machine delivers the necessary power and performance to tackle a wide range of cutting tasks effectively. Its powerful motor ensures smooth and efficient cutting operations, increasing productivity and reducing production time.
The X-axis of this 5-Axis Water Jet Cutter spans 4000mm, offering ample space for handling large workpieces and accommodating various cutting requirements. This extended axis range enables versatility in cutting different shapes and sizes, providing flexibility in manufacturing processes.
Overall, the 5-Axis Water Jet Cutting Machine is a versatile and reliable solution for precision cutting applications. With its advanced features, including a high flow rate, exceptional cutting accuracy, substantial weight, powerful working power, and a wide X-axis range, this machine is designed to meet the needs of modern industries seeking efficient and accurate cutting solutions.
Water jet cutter :
| Name | Item | Parameter |
|
Intensifier Pump
|
Model | WMT3742Z |
| motor | SIEMENS | |
| Method of Direction Regulation | Electronic direction regulation | |
| Pressure Range | 50-420MPA, continuous pressure is 330-380Mpa | |
|
Maximum Flow of Hydraulic Pump |
90 L/min | |
| Maximum Discharge Capacity | 3.7 L/min | |
|
Maximum Diameter of Gem Nozzle |
0.33 mm | |
| Power of Master Motor | 37 KW | |
| Power Source | 380V/50HZ, also work at 220V/60HZ, 415V | |
| Cutting Table | X axis Characteristic | use strong 10MM steel, 2000MM cutting range. The cutting table width is 2200mm |
| Y axis Characteristic | Cast iron is used as the foundation base , 4000MM cutting range . The cutting table length is 4200mm. | |
| Z axis Characteristic | Z axis double linear guide and four sliding block , 180MM, CAN DO 200MM | |
| Control Accuracy |
±0.01mm, cutting accuracy is ±0.1mm, reposition accuracy: ±0.02mm, max travelling speed:6000mm/min, we have new technology that can make the travelling speed 20-30m/min. |
|
| linear guider | TAIWAN HIWIN BRAND | |
| Table Ctructure | Separated body, can be delivered by one 20'FCL container | |
| Driving Way | Servo drive system | |
| CNC system | Ncstudio ,Fagor | |
| Servo Motor | SIEMENS motor | |

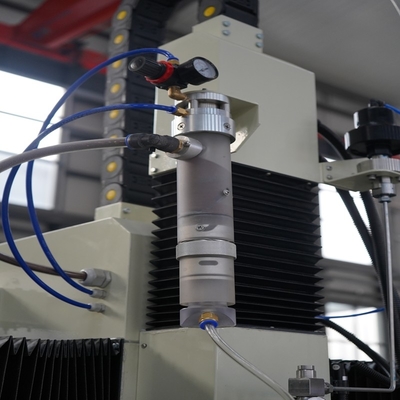

| Cutting Head | Casting structure and Concrete structure | |
| Sealing Way |

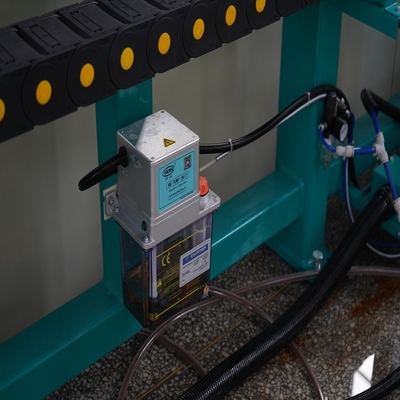

soft dustproof cloth on X,Y,Z axis,the sealing result will be better,and there is a oil tank under the cutting table,the linear guider no need maintainence. |
|
| Loading Weight Water Tank |
Wall thickness is 6mm,using fluorocarbon coating, Can antirust at least 5 years. |
|

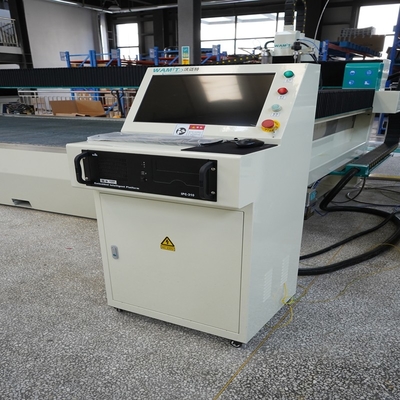

| CNC Controller | Control Method | CNC |
| Display Size | 21inch LCD | |
| Model of Cutting Text | DXF | |
| Model of Computer | Industrial Control Computer | |
| Operating System | Windows 7 | |
| PLC | SIEMENS | |
| Cutting Software Advantage | Auto save and transfer common parameter | |
| Controller Displace | Can be fit to suitable place at own will | |
|
Automitic Abrasive Feeder |
Founction | Sand storage and sand delivery |
| Operating | No need electrocnic control,sample operation | |
| Capacity | 200 kg for 8 -10hours | |
| Pressure | 0.3-0.6Mpa compresses gas pressure | |
| Color | White | |
|
Deionization System |
Water pressure | 0.15Mpa~0.6Mpa |
| Water temperature | 5°C~50°C | |
| Environment temperature | 5°C~50°C | |
| Relative humidity | ≤95%(25°C) | |
| Water turbidity | <20FTU | |

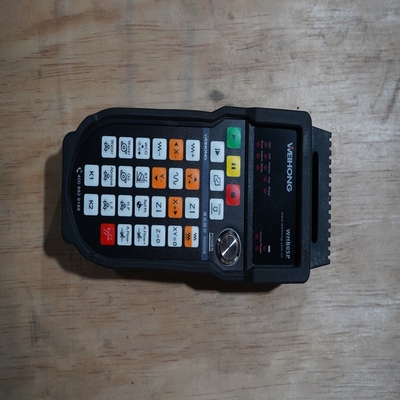

| Wireless Handle | Founction | Wireless controlling waterjet |
| Display | Real- time display condition of X,Y,Z axis | |
| Settings | Zero point, on/off valve set, X,Y,Z axis moving | |
| Technology | Advanced technology |
Water jet cutter Advantage:
1. 37KW SIEMENS motor
2. All electric components are Schneider brand
3. Can do special size and special design according to customer’s demand
4. Free abrasive sand feeding system
5. We have most convenient automatic abrasive sand removing and recycling system for any brand water jet cutting machine
6. Imported intensifier pump
7. Use 8mm steel to make the cutting table stronger and keep the precision time for whole life
8. Soft cover for linear guider or gear and rack, can effectively prevent dust
Water jet cutter cutting samples:
After-sales Service
1. Field maintenance and repair service,
2. Online support, Field installation, commissioning and training, Video technical support
3. Free spare parts.
