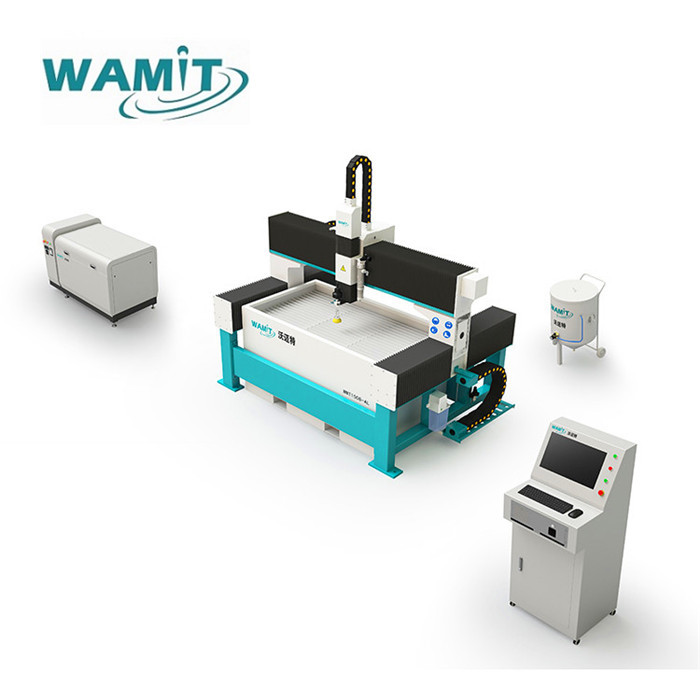

Provide INDIA local service stainless steel Cnc cutting machine 5 Axis Waterjet Cutter
60000PSI intensifier pump introduction:
|
420 intensifier high-pressure pump
|
FLOW TYPE 50Hp INTENSIFIER SIEMENS OIL PUMP SIEMENS PLC
|
|||
| intensifier | Intensifier parts are imported from USA | |||
|
Origin of intensifier: All major elements of intensifier are from USA Accustream |
Reversing valve(USA) | Reversing sensor(USA) | ||
| H.P Cylinder(USA) | Check Valves(USA) | |||
| H.P seals(USA) | End cup(USA) | |||
| L.P seals(USA) | End bell(TAIWAN) | |||
| Plungers(USA) | Hydraulic cylinder(USA) | |||
| Check Valve Outlet Body(TAIWAN) | Hydraulic Piston(USA) | |||
| ELECTRIAL COMPONENT: | Power motor | SIEMENS oil pump motor 37kW (50 hp) | ||
| Soft contactor | SIEMENS Star-delta contactors | |||
| H.P Control System / Language | SIEMENS PLC control / English | |||
| Max. Circuit Breaker at 380V/50Hz | Schneider 160 A Main Switch. | |||
| Thermal Overload Relay | Schneider | |||
| Intermediate Relay / 24VDC Power | Schneider | |||
| HYDRAULIC COMPONENT: | Hydraulic pump | Auto-Variable soil pump | ||
| Hydraulic valves | TAIWAN | |||
| Hydraulic Pipes | TAIWAN | |||
| Hydraulic Filter | Hydraulic Attenuator | |||
| Max high pressure | 420MPa (60,000psi) | |||
| Stable work pressure range | 25~380 MPa (3500~55,000 psi) | |||
| Nominal Power Rate | 37kW(50hp) 220V/60Hz 80 A | |||
| Max orifice size: | 0.33mm/0.013” | |||
| Max Water Flow Rate | 3.8L/min | |||
| Inlet Water Pressure range: | 2.0~6.0 bar | |||
| pressure after Booster | 6~8 bar | |||
| Inlet water attenuator capacity | 8.0 L | |||
| Inlet water Filter assembly | 5μm, 1μm, 0.1μm 3 filters and resin softened. | |||
| Request for water treatment | Request for clean and softened inlet water. | |||
| Max. Nominal Stroke Rate | 120 times/min | |||
| H.P Attenuator | 1.30 L maintenance free attenuator | |||
| Max. pressure fluctuation | 15MPa.(150bar) | |||
| Max. high-pressure limit | 420MPa | |||
| Outlet H.P tubing | 3/8” H.P tubing (from USA), 1/4"H.P tubing connect H.P and nozzle(from USA) | |||
| Display information | High-Pressure Display | Digital High-Pressure Display | ||
| Temperature display | Digital Temperature Display | |||
| Inlet Water Pressure Display | Mechanical Pressure Gauge | |||
| Water Pressure After Filter & Booster | Mechanical Pressure Gauge | |||
|
Control Panel |
LED Trouble shooting display | Motor ON/OFF Button (Schneider) | ||
| H.P ON/OFF Button (Schneider) | Local/Remote Button (Schneider) | |||
Main features of water jet cutter:
Any material can be cut at one time with any curve (other cutting methods except water cutting will be restricted by the material variety); no heat and harmful substances are generated during cutting, the material has no thermal effect (cold cutting), and it is not required after cutting Or easy secondary processing, safe, environmentally friendly, low cost, fast speed, high efficiency, can realize the cutting processing of any curve, convenient and flexible, and versatile. Water cutting is a cutting process with strong applicability at present.
