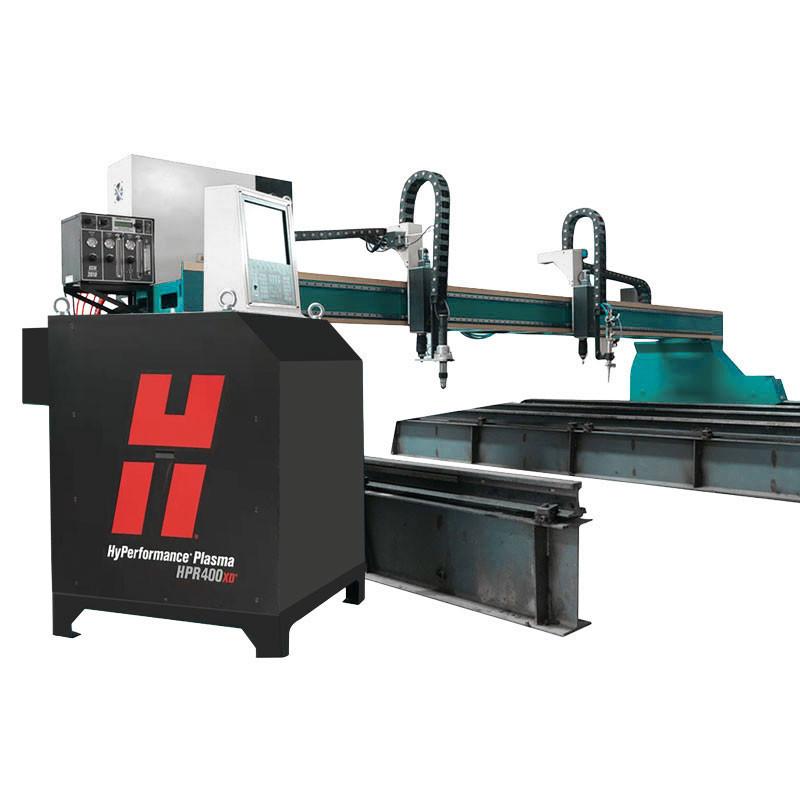

20mm 50mm double function steel hole drilling CNC Flame and Plasma Cutting Machine
This flame and plasma cutting machine is suitable for large-volume metal processing enterprises. It has professional stainless steel cutting technology. According to the selection, you can choose mixed gas cutting, water mist cutting and other processes. The working size can be customized according to the requirements of the enterprise, and the maximum operating speed can reach 24 Meters per minute, the maximum cutting speed can reach 12 meters per minute, and multiple flame cutting heads can be selected to meet the needs of enterprises for cutting thick metals .
CNC Flame and Plasma Cutting Machine advantage :
1. Energy saving and consumption reduction, durable
The frame beam is processed by large gantry milling at one time to ensure cutting accuracy
Hollow welding process, easy to dissipate heat, stable operation, high cutting precision
2. Easy to operate and reduce costs
It is suitable for cutting medium and thick plates. According to the selection, the maximum cutting plate is less than 50 mm. The equipment has excellent performance and the vertical height of the cutting surface is 2 degrees.
3. Independent research and development of software, free upgrade
4. Heavy-duty frame structure, high-power Panasonic servo motor, precision reducer
5. The use of a non-clearance soft fit device can effectively reduce the gear bite error and prevent iron filings from entering the gear during equipment operation and causing excessive wear on the equipment.
6. The arc voltage adjustment has high control accuracy, stable performance and strong anti-interference ability.
7. Equipped with the conversion of flame and plasma cutting types, the preheating delay and perforation lifting delay can be adjusted according to the cutting material and the characteristics of the machine.
CNC Flame and Plasma Cutting Machine specification :
| name | parameters |
| effective cutting size | 3150*12000mm |
| machine size | 4000*14000mm |
| cutting torches | strip torches: 8 sets( flame) |
| cnc torches: one flame, one plasma | |
| cutting method | flame and plasma |
| cutting thickness | flame 6-160mm |
| plasma 32mm | |
| flame cutting speed | 20-700mm/min |
| plama cutting speed | 500-3500mm/min |
| ignition mode | automatic ignition |
| rail length | 20m (total 40m) |
| marking mode | powder marking, inkjet marking, |
| power supply | 5kw (don't include plasma power) |
| gas type | acetylene propane |
CNC Flame and Plasma Cutting Machine cutting samples :
