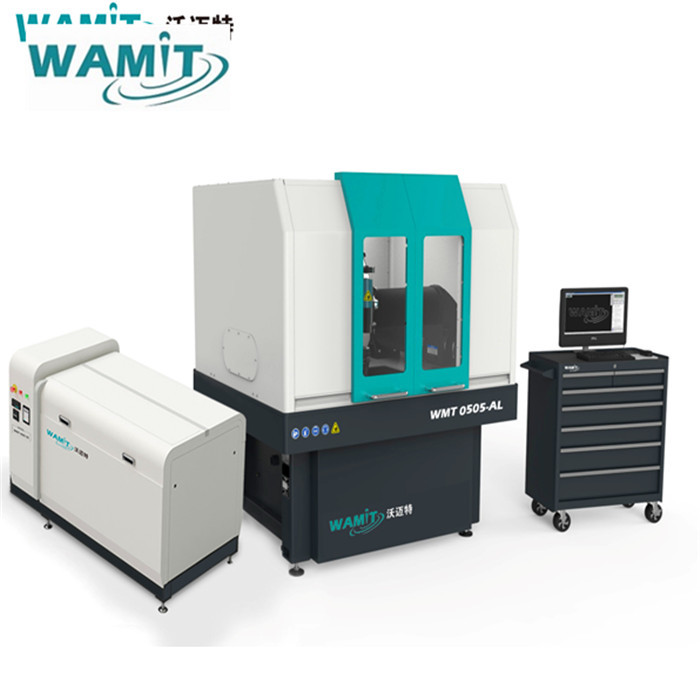

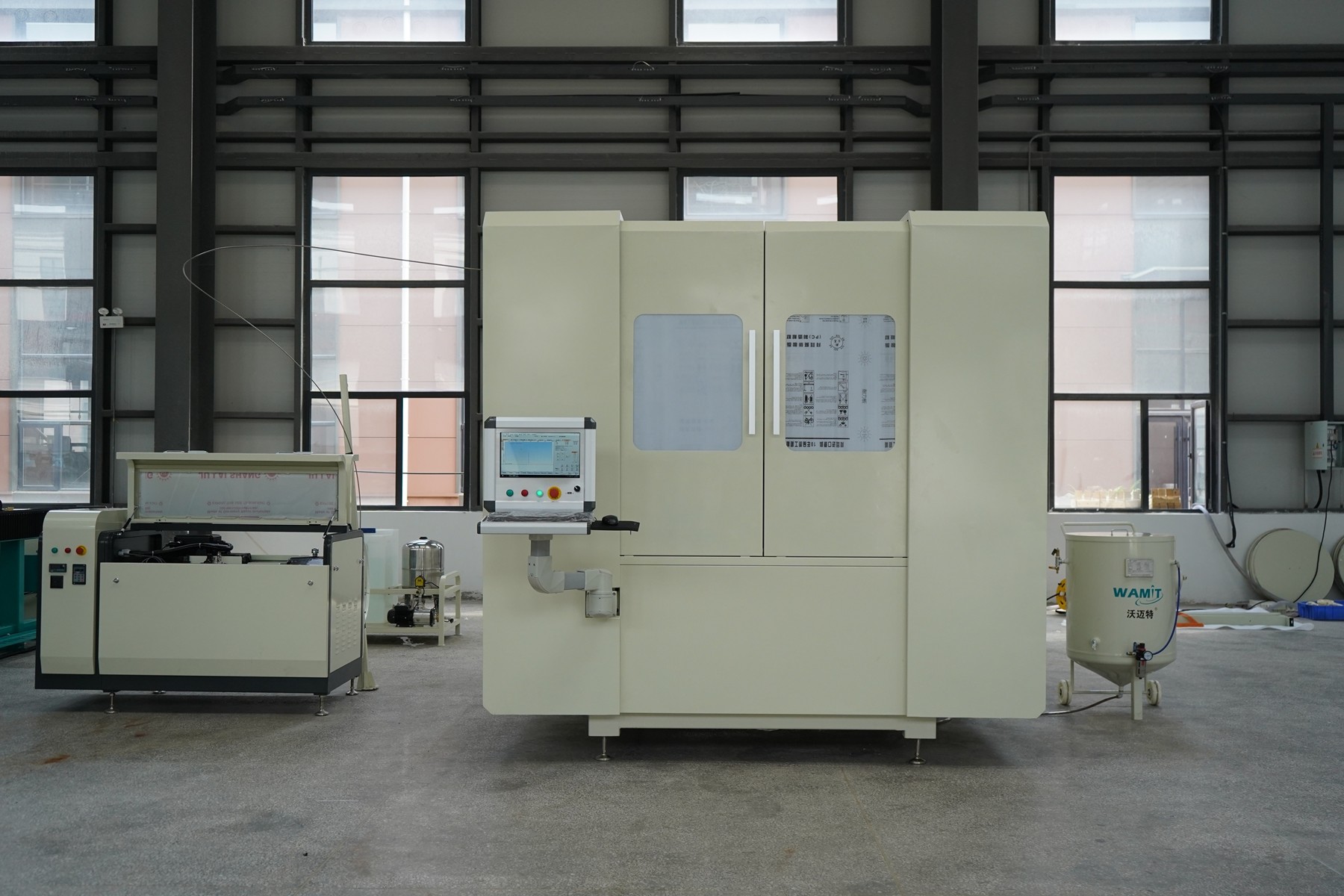

7.5kw 220mpa 30000psi 30A 220V Table with Cover Water Jet Cutting Machine

home use 7.5kw 200mpa 30000psi 30A 220V Single Phrase Table Top Water Jet Cutting Machine

Our water jet cutter specification:

Our water jet machine description:

The gantry-style balanced design structure is more stable and improves the accuracy of the machine. Ultra-high pressure cutter head, which can be cut with pure water and sand. It has 3-axis and 5-axis cutter heads for vertical and non-vertical cutting with a maximum cutting angle of 60 degrees. The X/Y axis adopts the labyrinth waterproof and sandproof double protection system. The X/Y axis adopts Taiwan's high-quality guide rail and Swedish ball screw. It is durable and the Z-axis fully enclosed structure is guaranteed to be free from water and sand. Heavy-duty machine tools, high-temperature forging, so that the machine will not be deformed during use. China's first generation of self-designed ultra-high pressure servo direct drive pumps are more energy efficient, environmentally friendly and light, and ultra high pressure booster pumps are easier to operate and maintain. The CNC control system uses the WEIHONG professional waterjet cutting CNC system. We also have ITALY imported software which support more than 20 languages.

Our water jet cutter more advantages:

1. Automatic lubrication system from the Valley of Japan.

2. The internal components are selected from Schneider International brand, with first-class quality and reliable work.

3. Way of drive : Servo ( drives and motors are from Japan YASKAWA ). 4 servo driver, Y axis is with 700w driver, X axis is with 400w driver.

4. High precision, Ensure cutting results.

5. Provide customizable services.

Our water jet cutter control system:

Dedicated water jet cutting software with graphic simulation running function, graphic input automatic programming function. • Support for DXF files. • Support forward and reverse processing functions. • Uniform speed control function. • Two modes of segmentation and smooth machining. • Automatic processing with small arc speed. • Coordinate recovery function after power off. • Double lift speed parameter function. • With cycle processing. • Convenient pause to continue and start machining in any segment. • Free time delay setting. • Apply SIEMENS PLC instead of relay, buttons are Schneider.Can provide Italy imported ECS software which can provide more than 20 languages.



Our water jet cutter size:



Can be customized to any size, mini platform or ultra-large platform or other size can be customized.



SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Model		WMT 1010	WMT 2050	WMT 3020	WMT 3080	WMT 5030
Cutting table	X axis(mm)	1200	2200	3200	3200	5200
	Y axis(mm)	1200	5200	2200	8200	3200
Max.cutting range(mm)	X axis(mm)	1000	2000	3000	3000	5000
	Y axis(mm)	1000	5000	2000	8000	3000
	Z axis(mm)	250	250	250	250	250





7.5kw direct drive pump:



WAMIT servo direct drive pump represents a new generation of high-efficiency, energy-saving ultra-high pressure pump, which is the first large R&D in China. Servo motor driven direct drive intensifier system.

Model: WMT SDD 9

Maximum pressure: 30000Psi.

Gemstone aperture: 0.3mm.

Displacement: 3.0 l/min.

Inlet pressure: 0.4MPa.

Main motor power: 7.5KW.

Dimensions: 1200*700*1100mm

Double row water filtration system (5Micron, 1micron, series)

Intelligent start and stop function.

Over-pressure automatic shutdown and under-pressure automatic protection.



Advantages of the WAMIT servo direct drive pump:

A: Energy saving: The main motor adopts a torque motor of 15KW, compared with the motor of the 37KW hydraulic high pressure intensifier system, the power consumption can be saved by 60%-70%.



B: Environmental protection: the use of servo direct drive, no hydraulic system, with self-cooling function. As we all know, hydraulic The hydraulic intensifier system must be filled with 110L of anti-wear hydraulic oil to work, and the heat generated by the hydraulic oil is also cooled by the oil cooler. The direct drive pump is completely free of hydraulic oil and cooling system.



C: High efficiency: Direct drive pump provides a higher pressure output ratio, cutting speed is 20 to 50% faster than the same equipment in the market.



E: Low noise: almost no noise when working.



F: Small weight: The total weight of the direct drive pump is less than 600kg, and the movement is flexible. The weight of the hydraulic intensifier pump is 1000kg.



G: Beautiful appearance: The structure is reasonable in design and beautiful in appearance, because the direct drive pump does not have a hydraulic system, Thereby avoiding the leakage of the hydraulic oil (the hydraulic seal will be damaged for a long time use, causing the hydraulic oil to leak), eliminates the contamination of equipment by oil stains.



Water jet cutter cutting samples:
